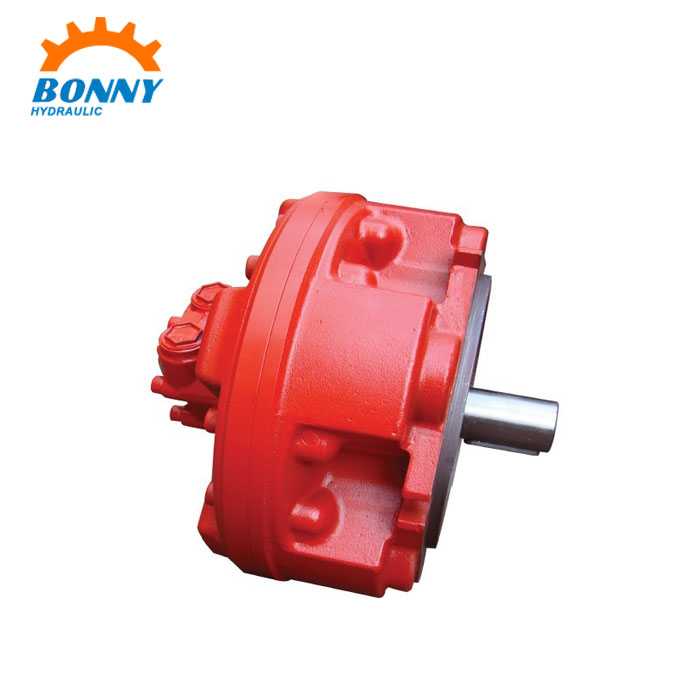

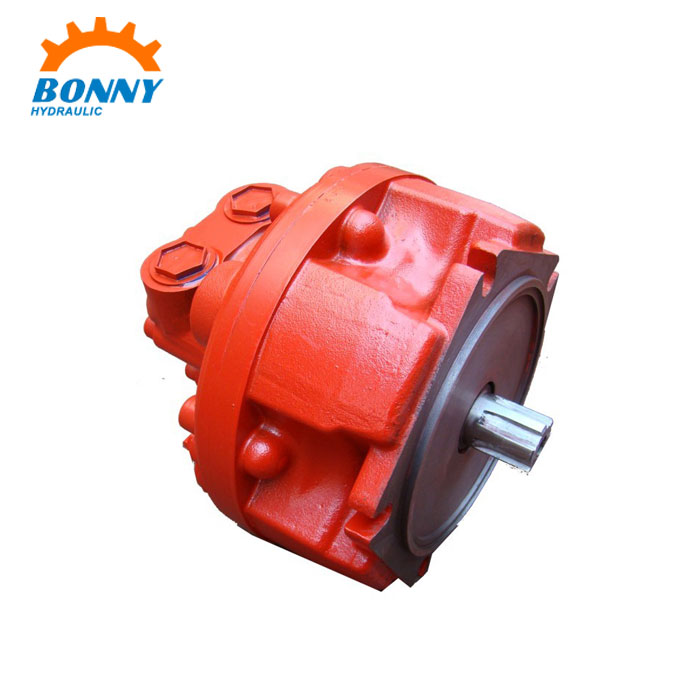

GM6 Series PisTon Hydraulic Motor
  • GM6 Series PisTon Hydraulic Motor - 0 GM6 Series PisTon Hydraulic Motor - 0
  • GM6 Series PisTon Hydraulic Motor - 1 GM6 Series PisTon Hydraulic Motor - 1

GM6 Series PisTon Hydraulic Motor

We produce GM6 Series PisTon Hydraulic Motor based on the technology of ITALY SAI GM6 Series PisTon Hydraulic Motor but with some improvement. It can be completely interchanged with SAI motor on performance and dimensions but with low cost and fast delivery. It features for high mechanical efficiency, high torque and small volume.

Send Inquiry

Product Description

Product introduction:

This GM6 Series PisTon Hydraulic Motor has such characteristics as: high mechanical efficiency and small volume, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship’s deck machinery, geological prospecting equipments, etc.


Features:

1. High Efficiency, small volume, light weight
2.High starting torque, high specific speed range
3.Motor can be used in the pump working condition and realize freewheel operation condition.
4. Compact structure, reasonable design
5. Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation.
6. The mounting dimension and more than 80% of internal components can be interchanged with SAI GM6 Series PisTon Hydraulic Motor.


Technical parameters:

GM6 GM6-1700 GM6-2100 GM6-2500 GM6-3000
Displacement cm3/rev 1690 2127 2513 3041
Piston  mm 82 92 100 110
Shaft stroke mm 64 64 64 64
Specific torque Nm/bar 26.4 33.2 39.2 47.5
  lb.ft/psi 1.37 1.72 2.03 2.46
Pressure rating1) bar 250 250 250 250
Peak pressure bar 450 400 350 300
Cont. speed rpm 250 225 200 175
Max. speed rpm 400 350 300 250
Peak power kW 170 170 170 170
  HP 231 231 231 231


Selection of GM6 Series PisTon Hydraulic Motor


Output shaft selection


Dimension of GM6 Series PisTon Hydraulic Motor
