GM1 Series Radial PisTon Motor
  • GM1 Series Radial PisTon Motor - 0 GM1 Series Radial PisTon Motor - 0
  • GM1 Series Radial PisTon Motor - 1 GM1 Series Radial PisTon Motor - 1

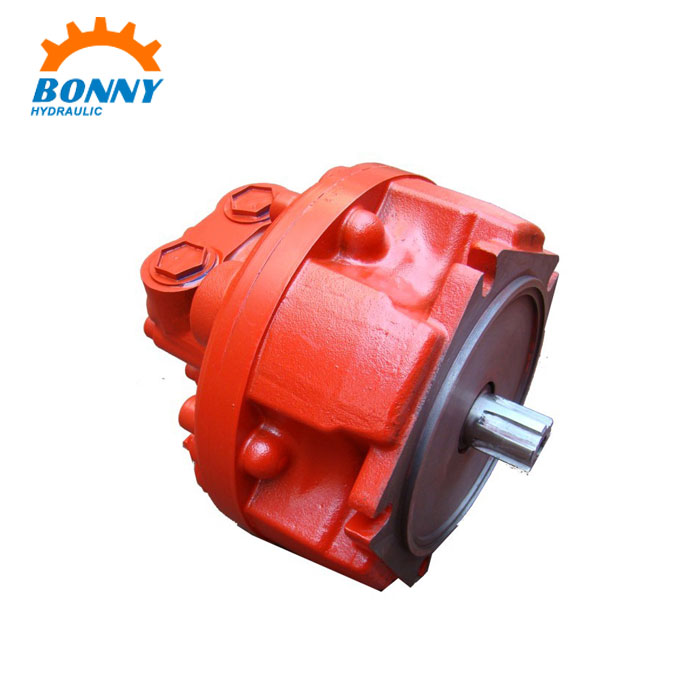

GM1 Series Radial PisTon Motor

We produce GM1 Series Radial PisTon Motor based on the technology of ITALY SAI GM series hydraulic motor but with some improvement. It can be completely interchanged with SAI motor on performance and dimensions but with low cost and fast delivery. It features for high mechanical efficiency, high torque and small volume.

Send Inquiry

Product Description

Product introduction:

This GM1 Series Radial PisTon Motor has such characteristics as: high mechanical efficiency and small volume, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship’s deck machinery, geological prospecting equipments, etc.


Features:

1. High Efficiency, small volume, light weight
2.High starting torque, high specific speed range
3.Motor can be used in the pump working condition and realize freewheel operation condition.
4. Compact structure, reasonable design
5. Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation.
6. The mounting dimension and more than 80% of internal components can be interchanged with SAI GM1 Series Radial PisTon Motor.


Technical parameters:

GM1 GM1-100 GM1-150 GM1-175 GM1-200 GM1-250 GM1-300 GM1-320
Displacement cm3/rev 99 154 172 201 243 290 314
Piston  mm 28 35 37 40 44 48 50
Shaft stroke mm 32 32 32 32 32 32 32
Spec. torque Nm/bar 1.54 2.40 2.68 3.14 3.80 4.52 4.90
Press. rating bar 250 250 250 250 250 250 250
Peak press. bar 425 400 375 350 350 300 280
Cont. speed rpm 550 550 550 550 450 350 350
Max. speed rpm 1000 1000 900 800 700 650 600
Peak power kW 48 48 48 48 48 48 48
  HP 65 65 65 65 65 65 65


Selection of GM1 Series Radial PisTon Motor


Output shaft selection


Dimension of GM1 Series Radial PisTon Motor
