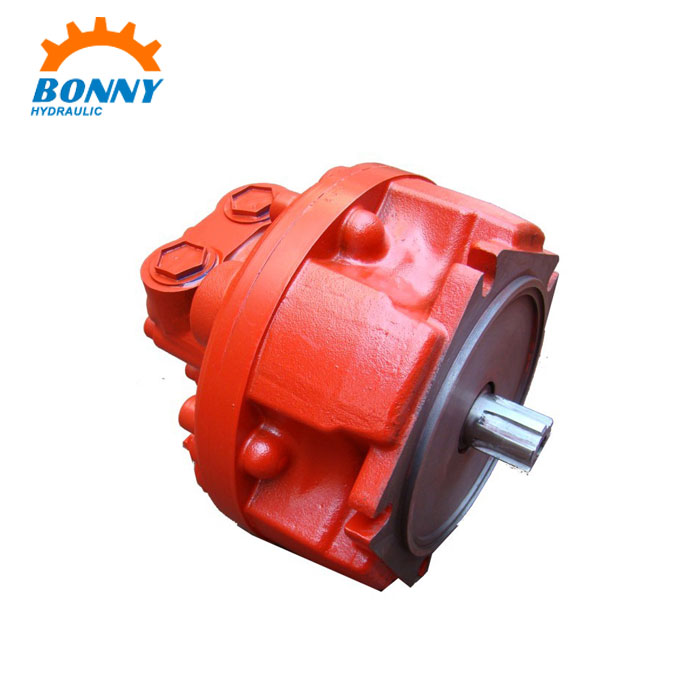

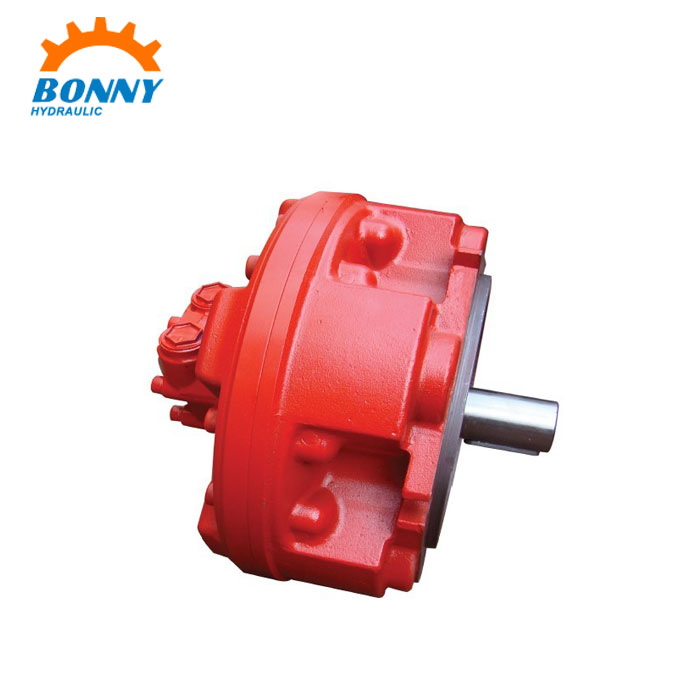

GM4 Series PisTon Hydraulic Motor
  • GM4 Series PisTon Hydraulic Motor - 0 GM4 Series PisTon Hydraulic Motor - 0
  • GM4 Series PisTon Hydraulic Motor - 1 GM4 Series PisTon Hydraulic Motor - 1

GM4 Series PisTon Hydraulic Motor

We produce GM4 Series Piston Hydraulic Motor based on the technology of ITALY SAI GM series hydraulic motor but with some improvement. It can be completely interchanged with SAI motor on performance and dimensions but with low cost and fast delivery. It features for high mechanical efficiency, high torque and small volume.

Send Inquiry

Product Description

Product introduction:

This GM4 Series Piston Hydraulic Motor has such characteristics as: high mechanical efficiency and small volume, thus it can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship’s deck machinery, geological prospecting equipments, etc.


Features:

1. High Efficiency, small volume, light weight
2.High starting torque, high specific speed range
3.Motor can be used in the pump working condition and realize freewheel operation condition.
4. Compact structure, reasonable design
5. Adopting high load capacity bearing and output shaft which can bear radial load and reverse the direction of rotation.
6. The mounting dimension and more than 80% of internal components can be interchanged with SAI GM4 Series Piston Hydraulic Motor.


Technical parameters:

GM4 GM4-600 GM4-800 GM4-900 GM4-1000
Displacement cm3/rev 616 793 904 1022
Rated torque Nm 2403 3100 3525 4000
Press. rating bar 250 250 250 250
Peak press. bar 400 400 375 350
Cont. speed rpm 0.4-400 0.4-350 0.4-325 0.4-300
Max. speed rpm 550 550 450 400


Selection of GM4 Series Piston Hydraulic Motor


Output shaft selection


Dimension of GM4 Series Piston Hydraulic Motor
