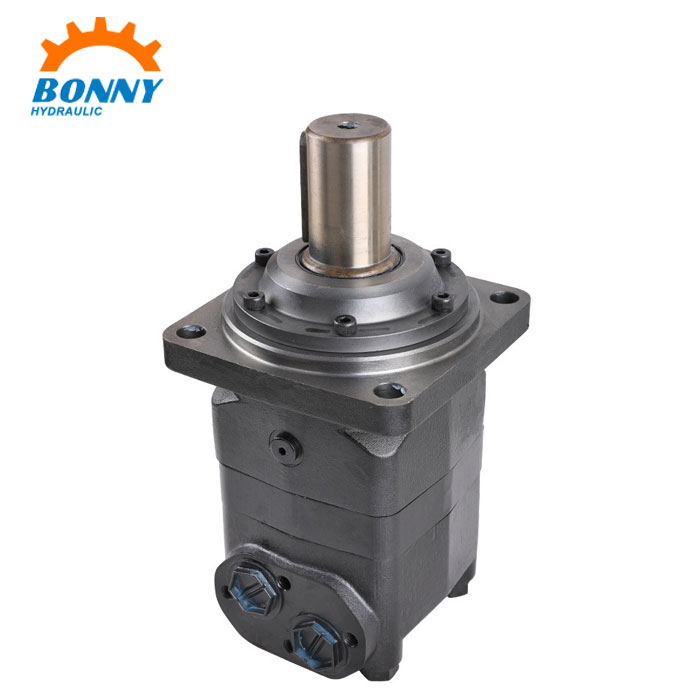

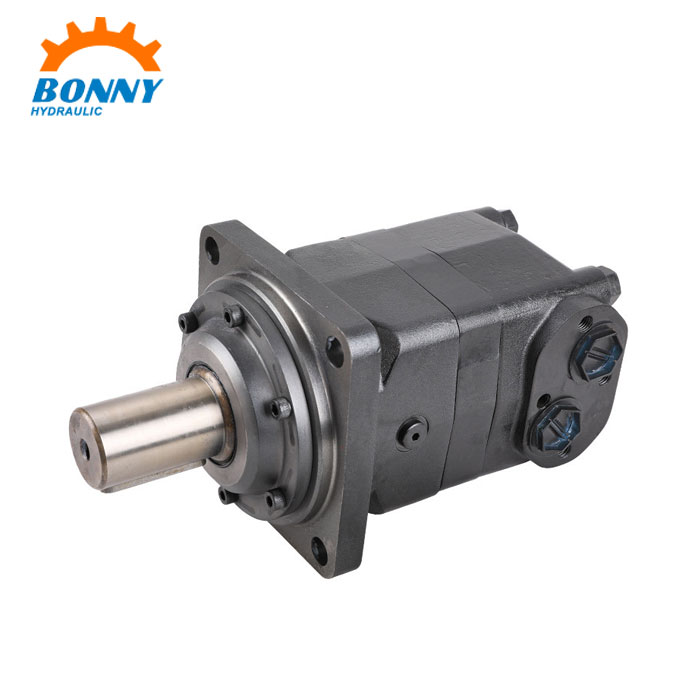

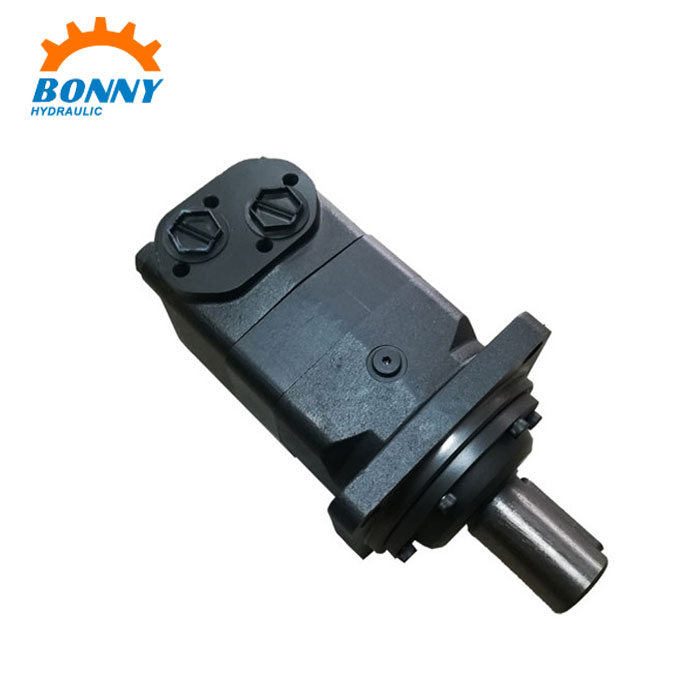

OMV Series Orbital Motor

We manufacture OMV Series Orbital Motor with more than 20 years’ experience. It can be interchanged with DANFOSS OMV Series Orbital Motor, EATON motor M+S motor on performance and dimensions but with low cost and fast delivery.

Send Inquiry

Product Description

OMV Series Orbital Motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the gerotor gear set desigh and provide compact volume, high power and low weight. It can be interchanged with DANFOSS OMV Series Orbital Motor, EATON motor M+S motor on performance and dimensions.



Characteristic features of OMV Series Orbital Motor:

1.Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.

2.Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.

3.Special design in the driver-linker and prolong operation life.

4.Advanced design in disc distribution flow, which can automatically compensate in operating.

5.The output shaft adopts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.

6.Various kinds of flange, output shaft and oil port mounting dimension.


Technical parameters:

Type

OMV 315

OMV 400

OMV 500

OMV 630

OMV 800

OMV 1000

Geometric displacement (cm3 /rev.)

333

419

518

666

801

990

Max. speed (rpm)

cont.

510

500

400

320

250

200

int.

630

600

480

380

300

240

Max. torque (N·m)

cont.

920

1180

1460

1660

1880

2015

int.

1110

1410

1760

1940

2110

2280

peak

1290

1640

2050

2210

2470

2400

Max. output (kW)

cont.

38

47

47

40

33

28.6

int.

46

56

56

56

44

40

Max. pressure drop (MPa)

cont.

20

20

20

18

16

14

int.

24

24

24

21

18

16

peak

28

28

28

24

21

18

Max. flow (L/min)

cont.

160

200

200

200

200

200

int.

200

240

240

240

240

240

Application of orbital motor
