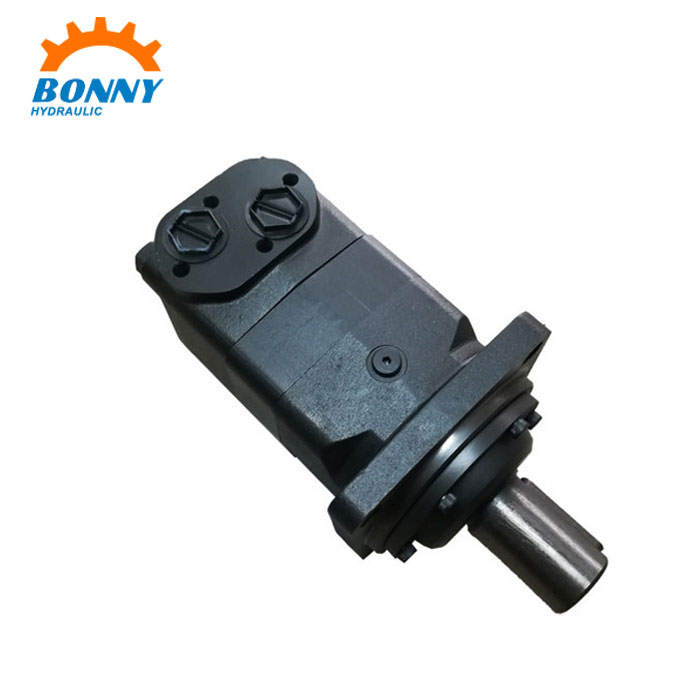

  • OMT Series Orbital Motor - 0 OMT Series Orbital Motor - 0

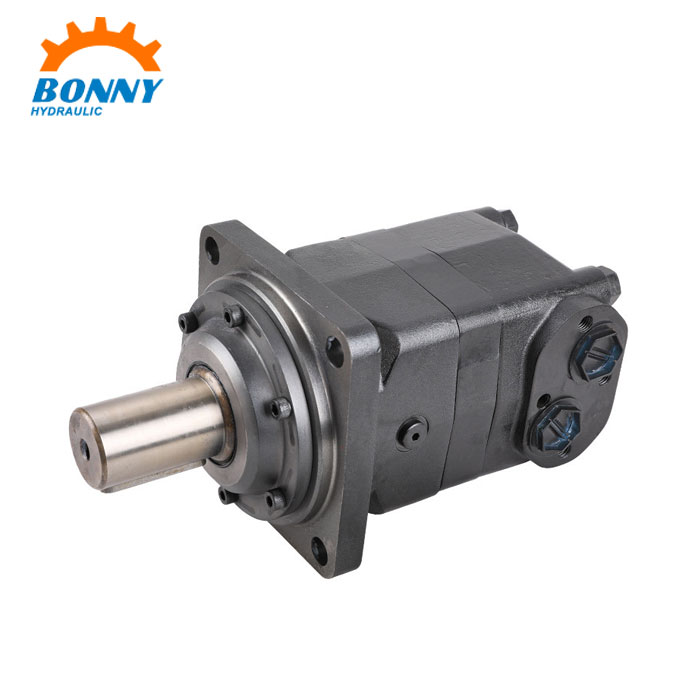

  • OMT Series Orbital Motor - 1 OMT Series Orbital Motor - 1

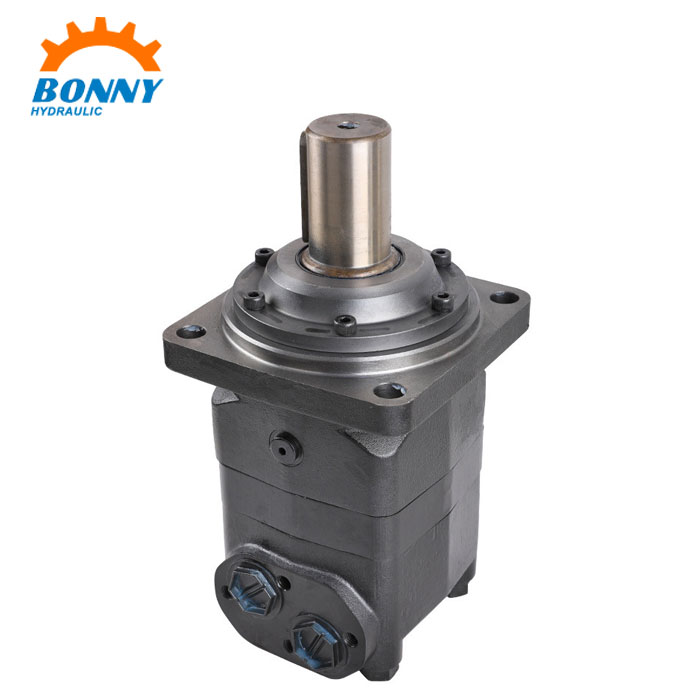

  • OMT Series Orbital Motor - 2 OMT Series Orbital Motor - 2

OMT Series Orbital Motor

We manufacture OMT Series Orbital Motor with more than 20 years’ experience. It can be interchanged with DANFOSS OMT Series Orbital Motor, EATON motor M+S motor on performance and dimensions but with low cost and fast delivery.

Send Inquiry

Product Description

Product introduction:

OMT Series Orbital Motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the gerotor gear set desigh and provide compact volume, high power and low weight. It can be interchanged with DANFOSS OMT Series Orbital Motor, EATON motor M+S motor on performance and dimensions.


Characteristic features of OMT Series Orbital Motor:

1.Advanced manufacturing devices for the Gerotor gear set, which use low pressure of start-up, provide smooth, reliable operation and high efficiency.
2.Shaft seal can bear high pressure of back and the motor can be used in parallel or in series.
3.Special design in the driver-linker and prolong operation life.
4.Advanced design in disc distribution flow, which can automatically compensate in operating.
5.The output shaft adopts in tapered roller bearings that permit high axial and radial forces. The case can offers capacities of high pressure and high torque in the wide of applications.
6.Various kinds of flange, output shaft and oil port mounting dimension.


Technical parameters:

Type BM6-160 BM6-200 BM6-250 BM6-315 BM6-400 BM6-500 BM6-630 BM6-800
Interchangeable OMT 160 OMT 200 OMT 250 OMT 315 OMT 400 OMT 500 OMT 630 OMT 800
Geometric displacement (cm 3 /rev) 161.1 201.4 251.8 326.3 410.9 523.6 629.1 801.8
Max.speed (rpm) Rated 470 475 381 294 228 183 150 121
cont. 614 615 495 380 302 237 196 154
int. 770 743 592 458 364 284 233 185
Max. torque (N*m) Rated 379 471 582 758 896 1063 1156 1207
cont. 471 589 727 962 1095 1245 1318 1464
int. 57.3 718 888 1154 1269 1409 1498 1520
peak 669 838 1036 1346.3 1450.3 1643.3 1618.8 1665
Max. output (kw) Rated 18.7 23.4 23.2 23.3 21.4 20.4 18.2 15.3
cont. 27.7 34.9 34.5 34.9 31.2 28.8 25.301 22.2
int. 32 40 40 40 35 35 27.5 26.8
Max. pressure Drop (Mpa) Rated 16 16 16 16 15 14 12 10.5
cont. 20 20 20 20 18 16 14 12.5
int. 24 24 24 24 21 18 16 13
peak 28 28 28 28 24 21 19 16
Max.flow (L/m) Rated 80 100 100 100 100 100 100 100
cont. 100 125 125 125 125 125 125 125
int. 125 150 150 150 150 150 150 150
Max. inlet pressure (Mpa) Rated 21 21 21 21 21 21 21 21
cont. 21 21 21 21 21 21 21 21
int. 25 25 25 25 25 25 25 25
peak 30 30 30 30 30 30 30 30
Weight (kg) 20 21 21 21 23 24 25 26
