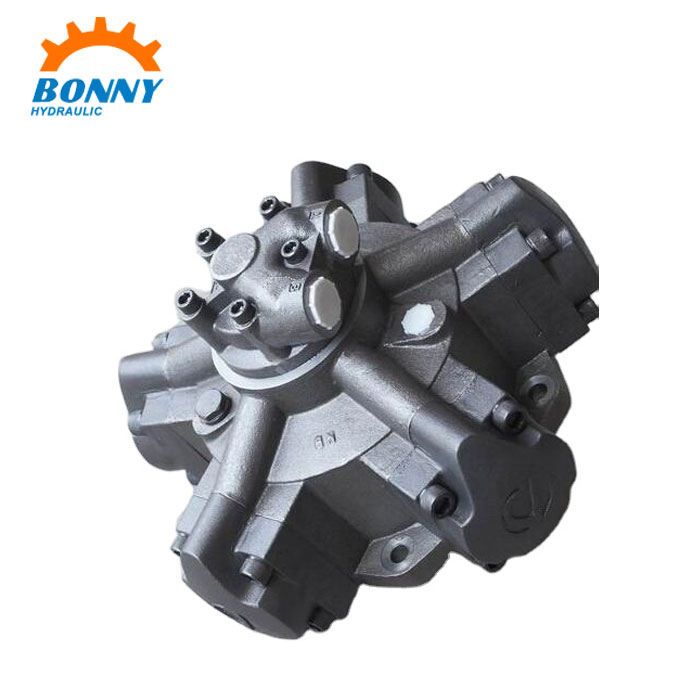

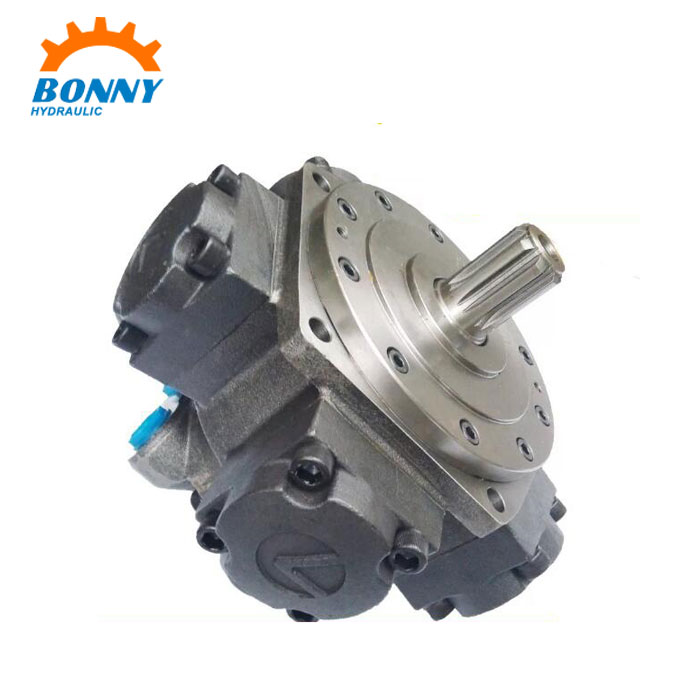

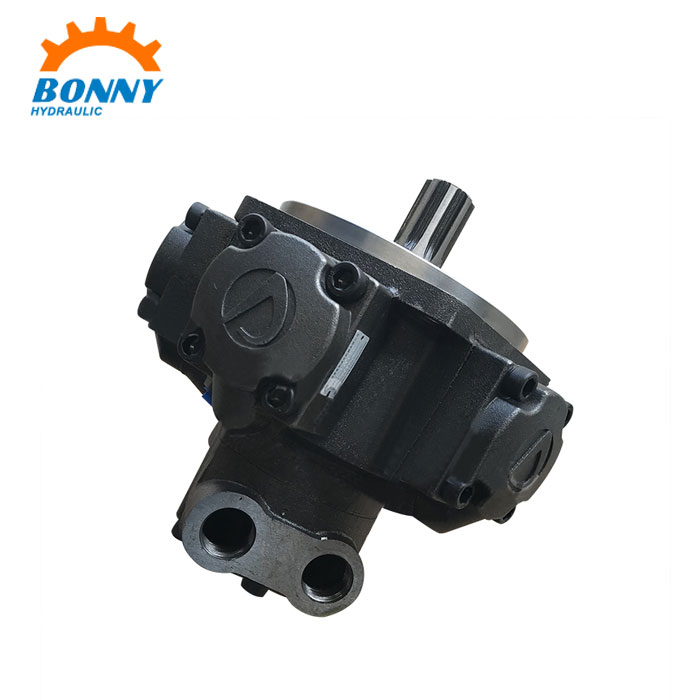

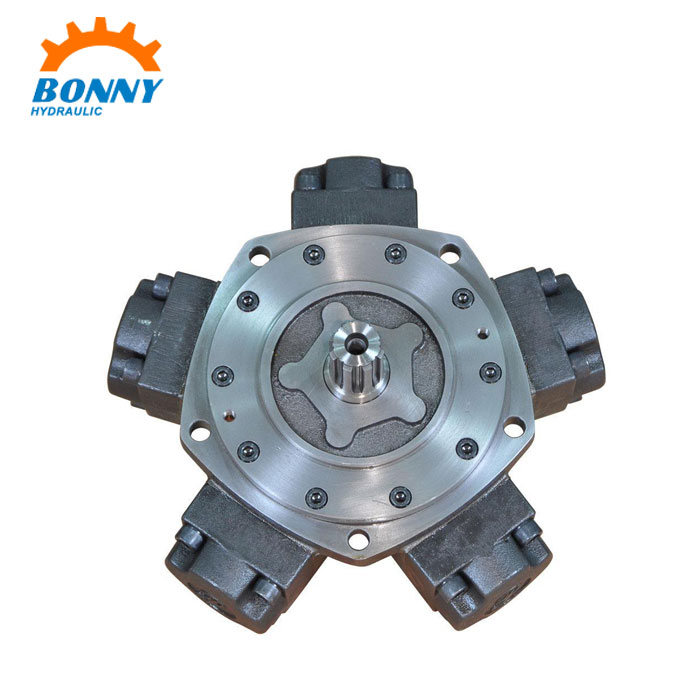

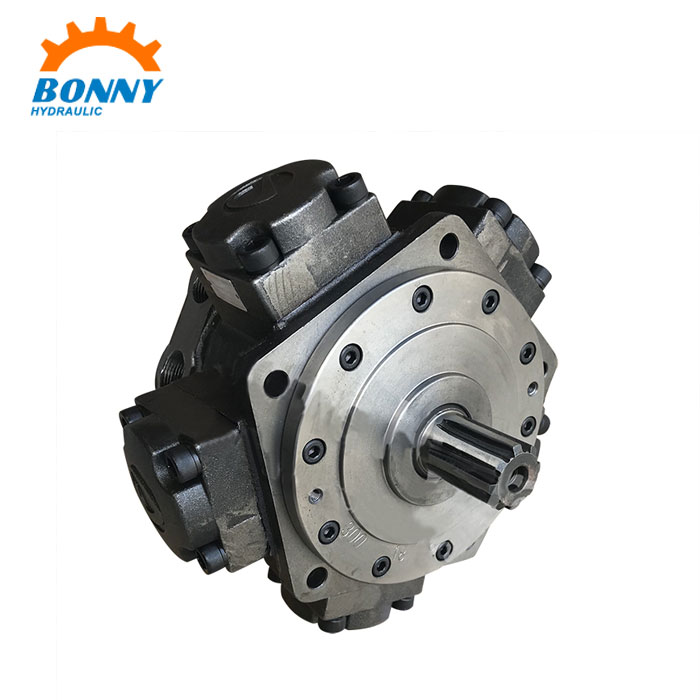

NHM70 Series PisTon Hydraulic Motor

We are with 20 years’ experience in produce NHM70 Series PisTon Hydraulic Motor. It can be completely interchanged with intermit NHM70 Series PisTon Hydraulic Motor on performance and dimensions but with low cost and fast delivery. The use of Taiwan NAK oil seal is not easy to leak oil.

Send Inquiry

Product Description

The NHM70 Series PisTon Hydraulic Motor is produced according to ltalian standards but in consideration of actual situations of China. The main parts and components are machined by machining center and CNC machine tools.



All the seal parts and high strength interior hexagonal bolts are imported from Germany, Italia and Taiwan. The casting is made of polyester sand nodular cast iron to ensure the performance and appearance quality of the products to overpass the similar products in China and overseas market.



This NHM31 Series PisTon Hydraulic Motor can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc.



Features:

1. Low noise due to an eccentric crankshaft and low excitation frequency of five-piston design;
2. Revolve steadily under very low speed due to high starting torque and good low-speed stability;
3. Good reliability and less leakage due to the patented flat compensation distributor, spcial sealing between piston and plunger bushing guarantees higher volumetrically efficiency;
4.High mechanical efficiency due to roller bearing between crankshaft and connecting rod;
5.Reversible rotation, and the output shaft can bear certain external force from both radial and axial direditons;
6.High power-mass ratio, small volume and light weight.
7. The mounting dimension and more than 80% of internal components can be interchanged with NHM70 Series PisTon Hydraulic Motor.



Technical parameters:

Type

Displacement (ml/r)

Pressure(MPa)

Torque(N.m)

Speed Range (r/min)

Weight (kg)

Rated Pressure

Max Pressure

Rated Torque

Specific Torque (N.m/MPa)

NAM70-5000

4968

20

25

14626

731

1-160

550

NAM70-5400

5452

20

25

16125

806

1-160

NAM70-6000

5984

20

25

17697

885

0.5-125

NAM70-6300

6540

18

22.5

17408

967

0.5-125

NAM70-7000

7122

16

20

16849

1053

0.5-125


Selection of NHM70 Series PisTon Hydraulic Motor


Output shaft selection
