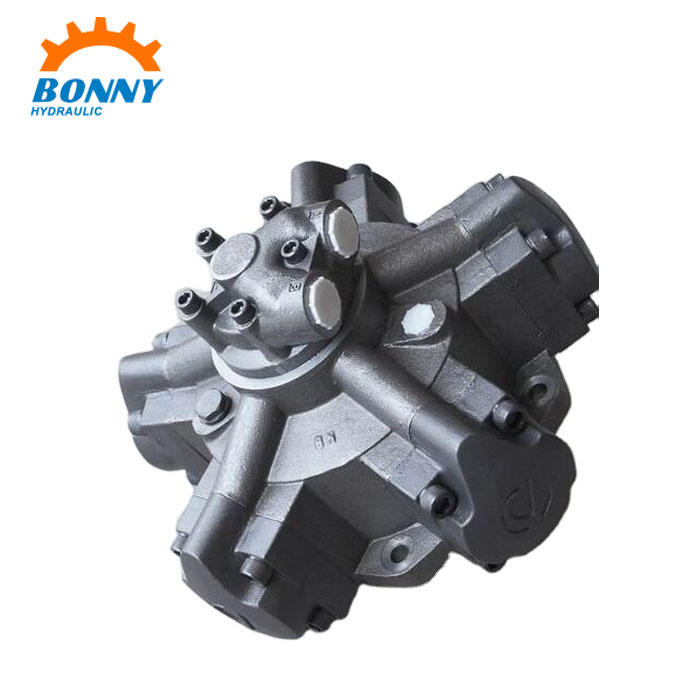

  • NHM2 Series Hydraulic Drive Motor - 0 NHM2 Series Hydraulic Drive Motor - 0

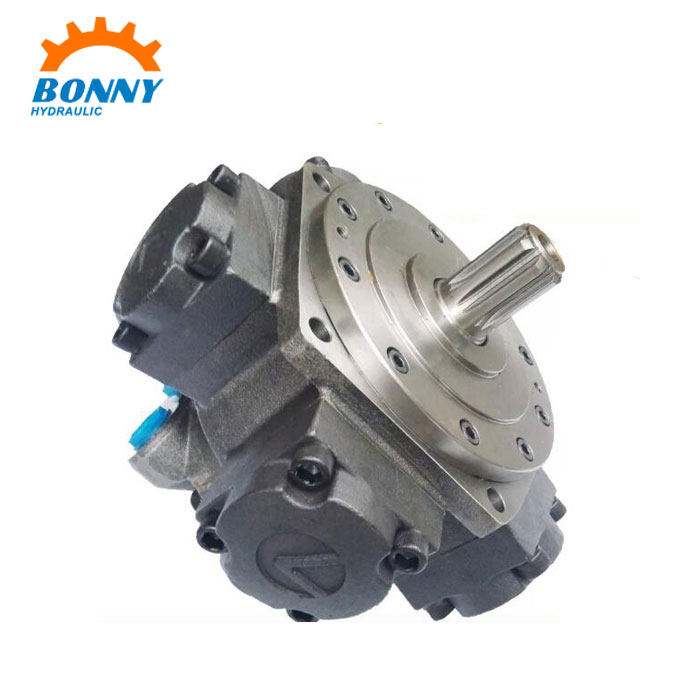

  • NHM2 Series Hydraulic Drive Motor - 1 NHM2 Series Hydraulic Drive Motor - 1

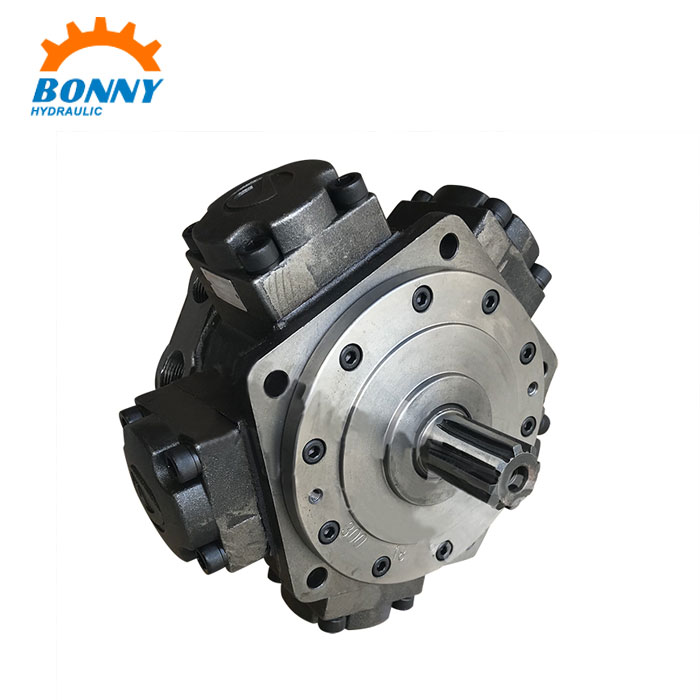

  • NHM2 Series Hydraulic Drive Motor - 2 NHM2 Series Hydraulic Drive Motor - 2

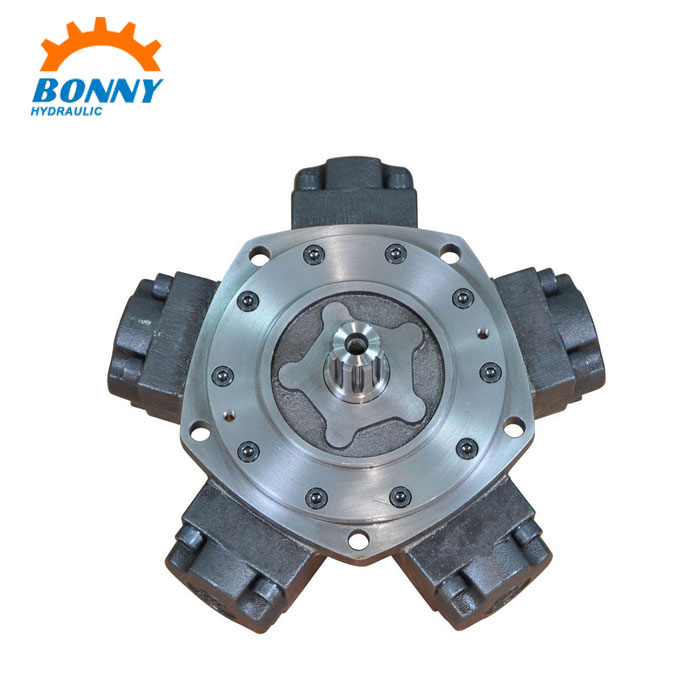

  • NHM2 Series Hydraulic Drive Motor - 3 NHM2 Series Hydraulic Drive Motor - 3

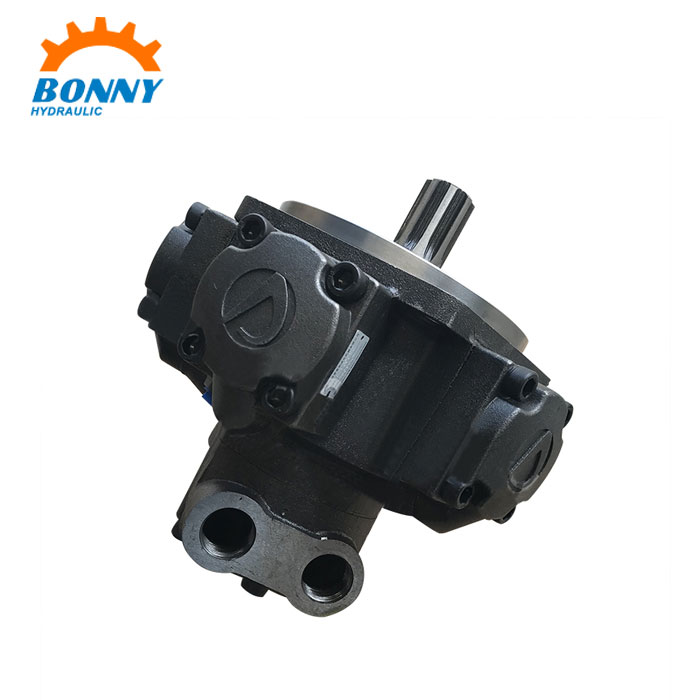

  • NHM2 Series Hydraulic Drive Motor - 4 NHM2 Series Hydraulic Drive Motor - 4

NHM2 Series Hydraulic Drive Motor

We are with 20 years’ experience in produce NHM2 Series Hydraulic Drive Motor. It can be completely interchanged with intermit NHM2 Series Hydraulic Drive Motor on performance and dimensions but with low cost and fast delivery. The use of Taiwan NAK oil seal is not easy to leak oil.

Send Inquiry

Product Description

Product introduction:

The NHM2 Series Hydraulic Drive Motor is produced according to ltalian standards but in consideration of actual situations of China. The main parts and components are machined by machining center and CNC machine tools.
All the seal parts and high strength interior hexagonal bolts are imported from Germany, Italia and Taiwan. The casting is made of polyester sand nodular cast iron to ensure the performance and appearance quality of the products to overpass the similar products in China and overseas market.
This NHM2 Series Hydraulic Drive Motor can be widely applied in hydraulic and transmission systems of plastics machinery, light industrial machinery, heavy type metallurgical machinery, petroleum and coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc.


Features:

1. Low noise due to an eccentric crankshaft and low excitation frequency of five-piston design;
2. Revolve steadily under very low speed due to high starting torque and good low-speed stability;
3. Good reliability and less leakage due to the patented flat compensation distributor, spcial sealing between piston and plunger bushing guarantees higher volumetrically efficiency;
4.High mechanical efficiency due to roller bearing between crankshaft and connecting rod;
5.Reversible rotation, and the output shaft can bear certain external force from both radial and axial direditons;
6.High power-mass ratio, small volume and light weight.
7.The mounting dimension and more than 80% of internal components can be interchanged with NHM2 Series Hydraulic Drive Motor.


Technical parameters:

Type Displacement (ml/r) Pressure£¨MPa) Torque(N.m) Speed (r/min) Weight (kg)
Rated Pressure Max Pressure Rated Torque Specific Torque (N.m/MPa)
NAM2-100 113 25 32 419 17 15-1250 27
NAM2-125 138 25 32 512 20 15-1250
NAM2-150 159 25 32 588 24 15-1000
NAM2-175 180 20 25 532 27 15-1000
NAM2-200 207 20 25 611 31 8-800
NAM2-250 235 16 20 556 35 8-630
NAM2-280 276 16 20 653 41 8-500


Selection of NHM2 Series Hydraulic Drive Motor


Output shaft selection


Dimension of NHM2 Series Hydraulic Drive Motor
