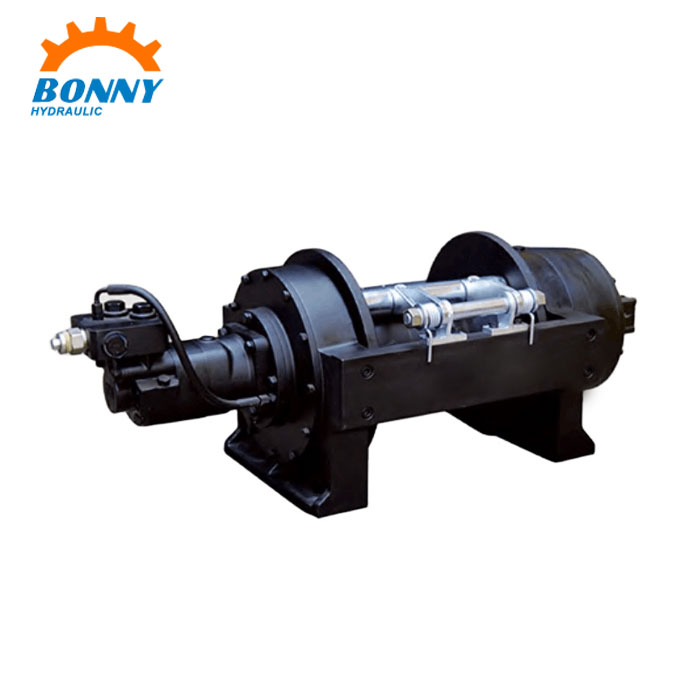

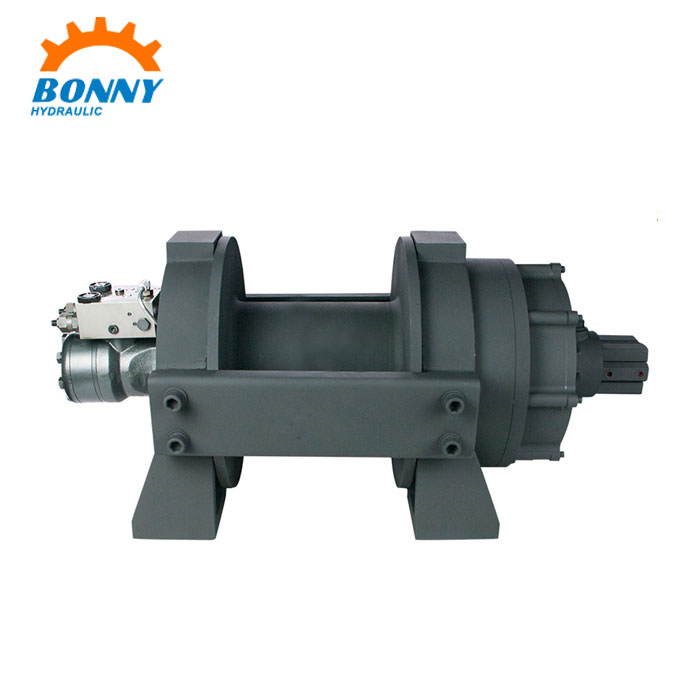

Pulling Hydraulic Winch

HCP series Pulling Hydraulic Winch which mainly consists planetary decelerator, hydraulic motor, brake, drum, etc. The winch makes the operation more stable and the structure more reasonable, its use multidisc type friction brake makes the brake torque large, safe and reliable. This kind of winch can be used for truck, wrecker, mobile cranes, fishing boats, garbage trucks, earth boring and drilling equipment and many military applications.

Feature of Pulling Hydraulic Winch

1.Full-float typed planetary gear reducer makes the operation more stable,the structure reasonable.
2.Adopt multidisc-typed normally-closed brake makes torque larger,safer and reliable.
3.The product is featured by its small size, compact compact construction and high transmission effciency
4.Free spooling function.
5.Adopt high efficiently hydraulic motor with long use life.
6.The installtion bracket can be manufactured according to the customer's requirement.
7.According to the requirement of customers,manufacture the balance valve and shuffle valve special for this winch.
8.Adopt manual or pneumatic clutch.

Technical parameters of Pulling Hydraulic Winch

FAQ

Q: Are you trading company or manufacturer of Pulling Hydraulic Winch?

A: We are factory of Pulling Hydraulic Winch

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered Hydraulic Towing Winch is suitable for your application, please offer the following details:

1. pull force of inner layer (kg):

2. rope speed of inner layer (m/min):

3. rope diameter (mm):

4. length of rope (m):

5. drum diameter (mm):

6. with or without groove:

7. with or without brake:
