MS Series Wheel Motor

We produce MS Series Wheel Motor more than 20 years. It features for high mechanical efficiency and high volumetric efficiency. It can be interchanged with POCLAIN MS and MSE series hydraulic motor on performance and dimensions.

Send Inquiry

Product Description

Product introduction:

MS Series Wheel Motor has such characteristics as: high mechanical efficiency and high volumetric efficiency, thus it is widely used in the travelling movement of those wheel vehicle and mechanical hydraulic power system of engineering plant, agricultural machinery, coal mining machinery, lifting and transportation equipment, ship's deck machinery, geological prospecting equipments, etc.


Features:

1.Modular design and independent assortment on request
2.Supporting axial and radial loading.
3.Double displacement output
4.High working pressure, low speed stability and freewheel operation condition.
5.The mounting dimension can be interchanged with Poclain MS, MSE Series Hydraulic PisTon Motor and Bosh Rexroth MCR series wheel motor.


Technical parameters of MS Series Wheel Motor:

Model Displacement (ml/rpm) Rated pressure (MPa) Max pressure (MPa) Rated pitch of strand (N.m) (whole displacement) Speed range (rpm) Max power (kw) (whole displacement)
Whole displacement Semi displacement
MS02 213   25 40 796 0-310 16
MS05 468 234 25 40 1749 0-200 25
MS08 780 390 25 40 2914 0-170 36
MS11 1048 524 25 40 3916 0-160 44
MS18 1747 873 25 40 6528 0-150 62
MS25 2498 1249 25 40 9334 0-130 80
MS35 3494 1747 25 40 13055 0-100 97
MS50 4996 2498 25 40 18667 0-100 123
MS83 8328 4164 25 40 31098 0-80 176

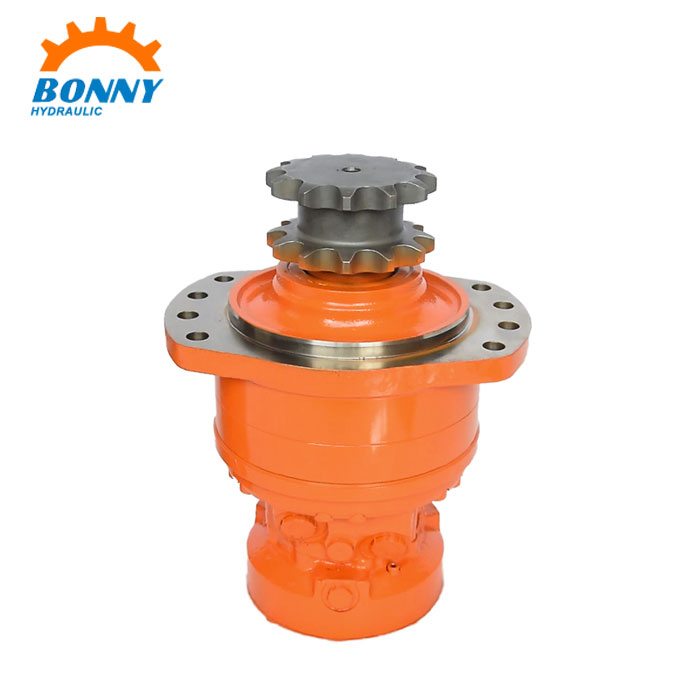

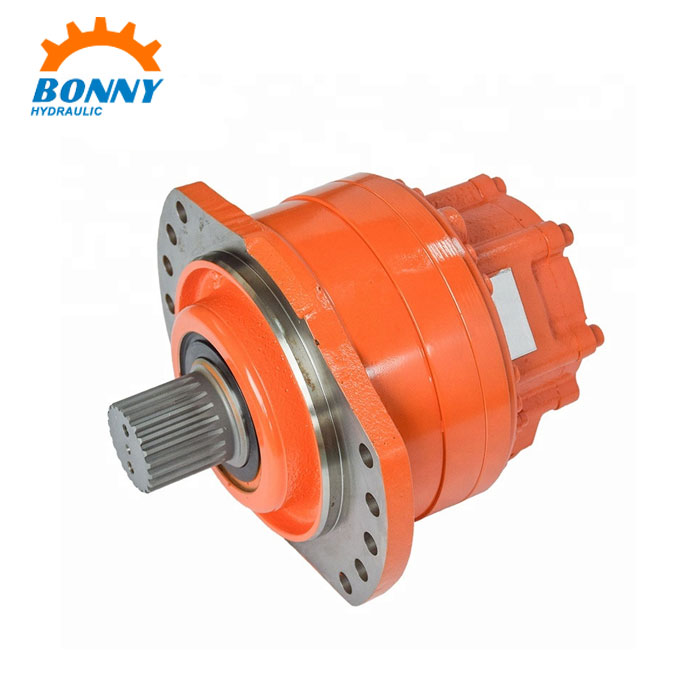

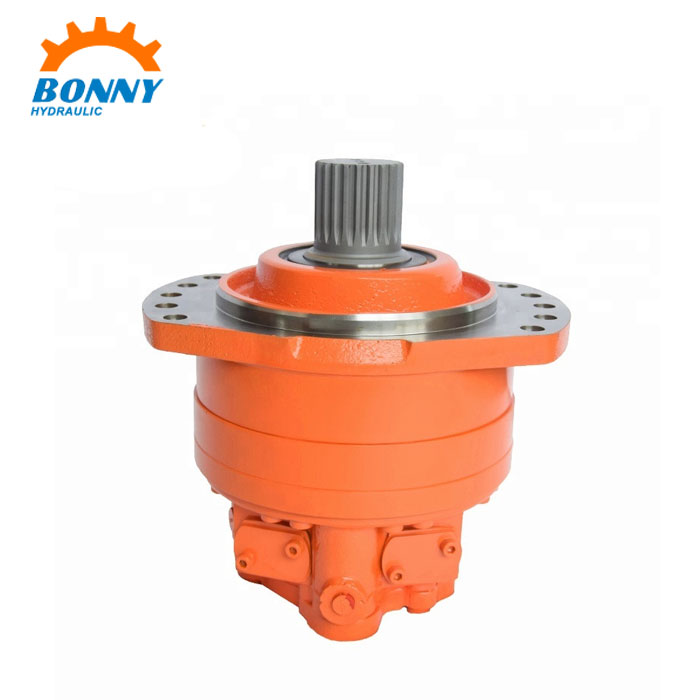

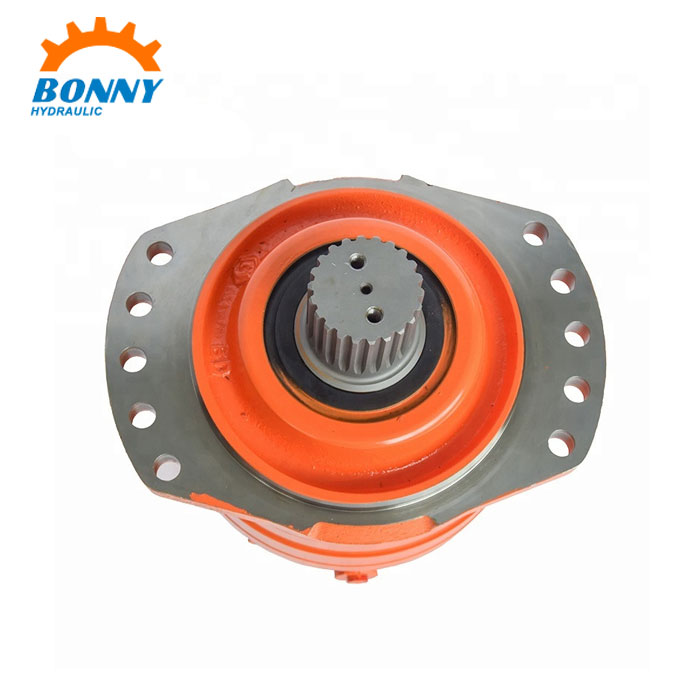

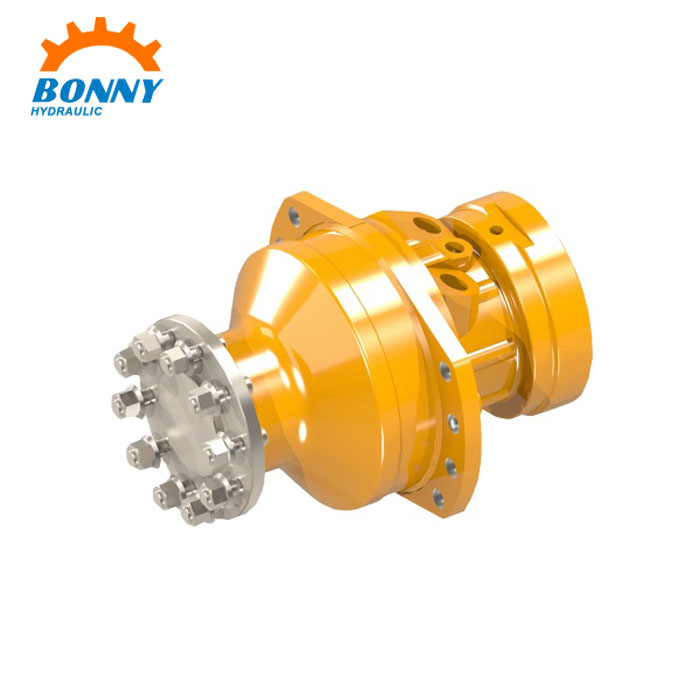

Product picture of MS Series Wheel Motor:
