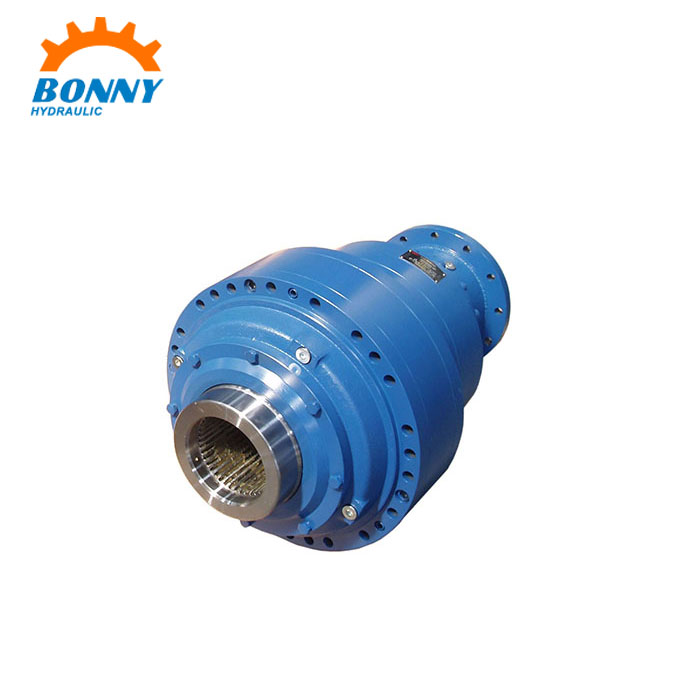

Inline Planetary Gearbox

We produce Inline Planetary Gearbox more than 20 years. The installation and overall dimension of Inline Planetary Gearbox can be completely interchangeable with ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series and Dinamic oil RE, RA series Inline Planetary Gearbox on performance and connection dimensions..

Send Inquiry

Product Description

The installation and overall dimension of Inline Planetary Gearbox are strictly designed in accordance with Italy and American manufacturers, so they can be completely interchangeable with ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series and Dinamic oil RE, RA series Inline Planetary Gearbox on performance and connection dimensions. They are the ideal product to replace those Italian products.



Configuration

Mounting solution: flange mounted, foot mounted, shaft mounted

Features of Inline Planetary Gearbox:
◆Torque Range: 1000 ... 1.100.000 Nm
◆Transmissible Mechanical brower: up to 450 kW
◆Gear Ratios: i=3,4 ... 5.000
◆Gear Unit Versions

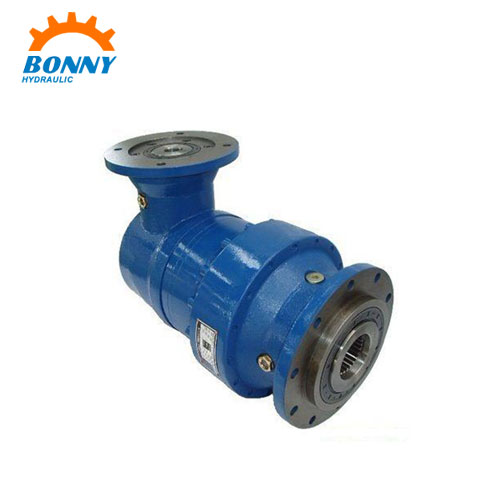

 Right angle (with a spiral bevel gear set)
◆Ouput Configuration

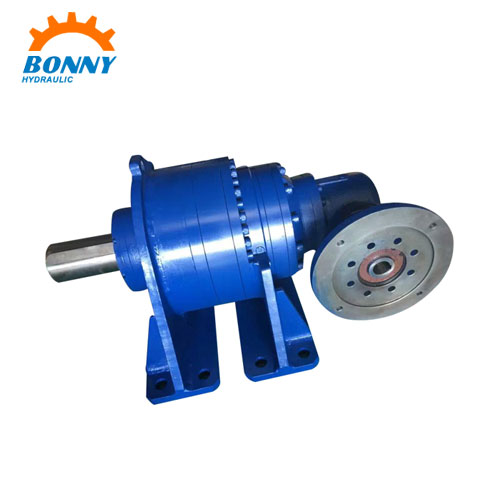

 Foot and flange mounted
◆Output shaft:
 solid with key, sbrlined, sbrlined hollow,
 hollow with shrink disc
◆Input Configurations
 Flanged axial piston hydraulic motors
 Hydraulic orbit motors
 IEC and Nema motor adaptors
 Solid input shaft
◆Hydraulic Brake
 Hydraulically released parking brake on request
◆Electric Brake: DC and AC type



Application of inline planetary gearbox

mixers, extruders, conveyors belts, industrial and port lifting equipment, grinders and mills, machines for working sheet and rod, large iron-making plants, sugar and food oil production plants, plants for quarries and mines, purification plants.



Technical parameters of inline planetary gearbox

Model

Ratio (i)

Output Torque (Nm)

300

3.4-2700

1000

301

3.4-2700

1750

303

3.6-2800

2500

304

3.6-2500

3500

305

3.6-2800

5000

306

3.6-2900

8500

307

3.4-2500

12500

309

3.4-2500

18500

310

4-5000

25000

311

4-5000

35000

313

4-5000

50000

314

4-5000

65000

315

4-5000

80000

316

4.4-5000

105000

317

4-5000

150000

318

4.4-5000

200000

319

4.8-5000

300000

321

4.4-5000

450000
