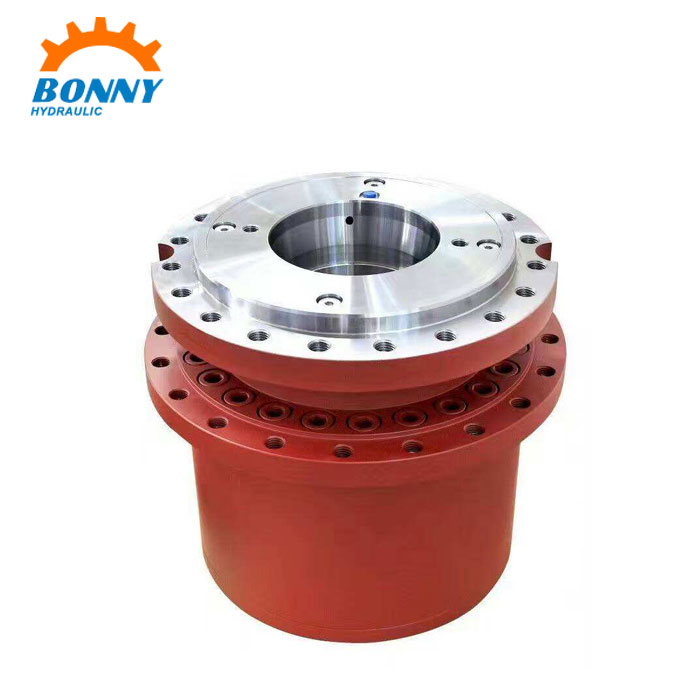

GFT450 Track Drive Gearbox

We produce GFT450 Track Drive Gearbox more than 10 years. It is an ideal driving component for wheel or track driving vehicles, and other moving equipment.

Send Inquiry

Product Description

GFT450 Track Drive Gearbox is an ideal driving component for wheel or track driving vehicles, and other moving equipment and widely applied in excavator, spreading machine, drill machine, mobile crusher, engineering machinery, mining, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.



Features of GFT450 track drive gearbox:

◆Integr. multi-disc parking brake

◆Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)

◆Interchangeable with Rexroth on performance and dimension.

◆More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and soon).



Technical parameters

Type/Version

GFT 7 T2

GFT 9 T2

GFT 13 T2

GFT 17 T2

GFT 17 T3

GFT 24 T3

Output Torque

T2

Max

Nm

7000

9000

13000

17000

17000

24000

Ratio



 I

30.9-62.6

38.3-47.6

16.3-60.2

6.4-54

78-102.6

90.1-137.2

Hydraulic Motor





A10VM45

A10VE45

A2FE56

A6VE55

A10VE63

A10VM45

A2FE63

A6VE55

A2FE56

A6VE55

A2FE63

A10VE45

Weight without Motor

(approx.)



kg

45

67

92

90

105

115

Type/Version





GFT 26 T3

GFT 36 T3

GFT 50 T3

GFT 60 T2

GFT 60 T3

GFT 80 T2

Output Torque

T2

Max

Nm

26000

36000

50000

60000

60000

80000

Ratio



42.9-62

67-161

66.3-146.4

23

94.8-197

55.5

Hydraulic Motor





A2FE90

A6VE80

A2FE90

A10VE80

A2FE125

A6VE107

A6VM220

A2VE125

A6VE107

A6VM220

Weight without Motor

(approx.)



kg

155

170

220

205

260

570

Type/Version





GFT 80 T3

GFT 110 T3

GFT 160 T3

GFT 220 T3

GFT 330 T3



Output Torque, crane

T2

Max

Nm

8000

110000

160000

220000

330000



Ratio



 I

76.7-185.4

95.8-215

161.8-251

97.7-365

168.9-302.4



Hydraulic Motor





A2FE180

A6VE160

A2FE180

A6VE160

A2FE180

A6VE160

A2FE180

A6VE160

A6VM355

A2FE355

A6VE250



 Weight without Motor

(approx.)



kg

405

505

680

1370

1250





Model selection
