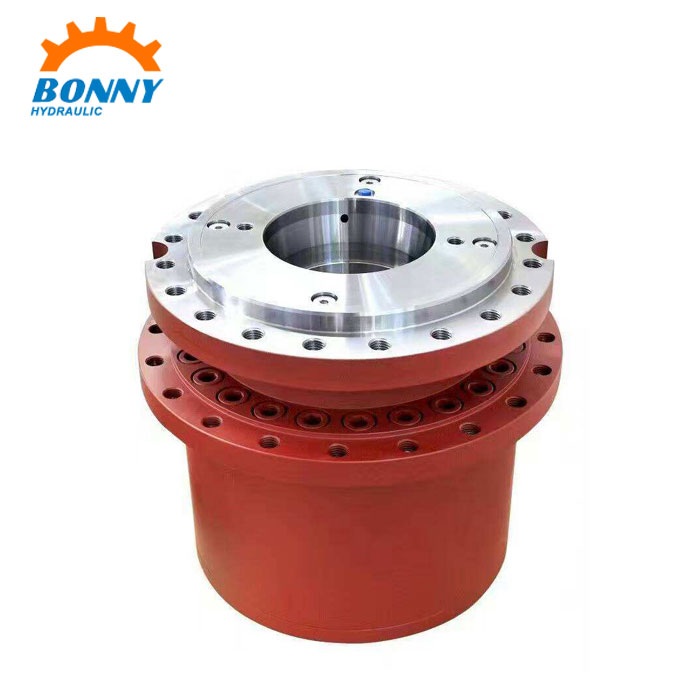

GFT220W3 Winch Drive Gearbox

We produce GFT220W3 Winch Drive Gearbox more than 10 years. It is an ideal driving component for hoisting mechanism. It has been widely applied in winding gear of truck crane, crawler crane, ship crane and harbor crane.

Send Inquiry

Product Description

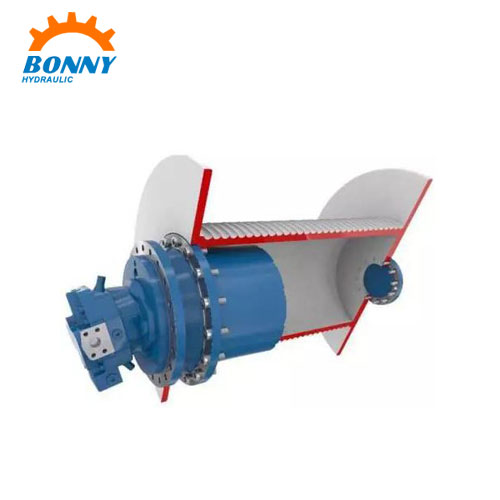

GFT220W3 Winch Drive Gearbox is an ideal driving component for hoisting mechanism. It has been widely applied in winding gear of truck crane, crawler crane, ship crane and harbor crane. Because of its compact structure, it can be installed in reel for saving space. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth GFT220W3 Winch Drive Gearbox.



Special Features of GFT220W3 Winch Drive Gearbox:
1. Compact two-, three- or four-stage planetary gearboxes
2. Cageless planetary gear bearing
3. Robust main bearing
4. Optimized seals
5. Integr. multi-disc parking brake
6. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7. Interchangeable with Rexroth on performance and dimension.
8. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).



Technical parameters

Model

Max.Output Trque    (N.m)

Ratio       (i)

Hydraulic Motor

Pull Force    (KN)

GFT9W2

7000

25

32

63

A2FE23     A2FE28      A2FE32

40

51

63



GFT13W2

9500

32

36



A2FE28     A2FE32      A2FE45

50

GFT17W2

14000

37

45

54

A2FE45     A2FE56      A2FE63

67

GFT17W3

14000

77

88

102

A2FE45     A2FE56       A2FE63

74

GFT24W3

19000

90

102

120

A2FE45     A2FE56       A2FE63

99

GFT26W2

18000

42

50

62

A2FE45     A2FE56       A2FE63    A2FE80     A2FE90

84

GFT36W3

26000

67

79

100

A2FE45     A2FE56       A2FE63  A2FE80     A2FE90

118

116





GFT40W2

27000

35

41

48

A2FE45     A2FE56       A2FE63     A2FE80     A2FE90

108

59





GFT50W3

37500

84

91

99

A2FE45     A2FE56       A2FE63   A2FE80     A2FE90

150

125

146



GFT60W3

42500

86

94

105

A2FE80     A2FE90       A2FE107   A2FE125   A2FE160     A2FE180

164

119

139

169

GFT80W3

67000

76

99

110

A2FE107   A2FE125     A2FE160   A2FE180

231

126

149

185

GFT110W3

100000

95

114

128

A2FE107   A2FE125     A2FE160   A2FE180

300

147

173



GFT160W3

140000

147

173

185

A2FE107   A2FE125     A2FE160   A2FE180

373

GFT220W3

200000

188

246

293

A2FE107   A2FE125     A2FE160   A2FE180

471

GFT330W3

275000

168

209

252

A2FE125   A2FE160     A2FE180   A2FE250

595

302







Internal Spare part of gearbox
