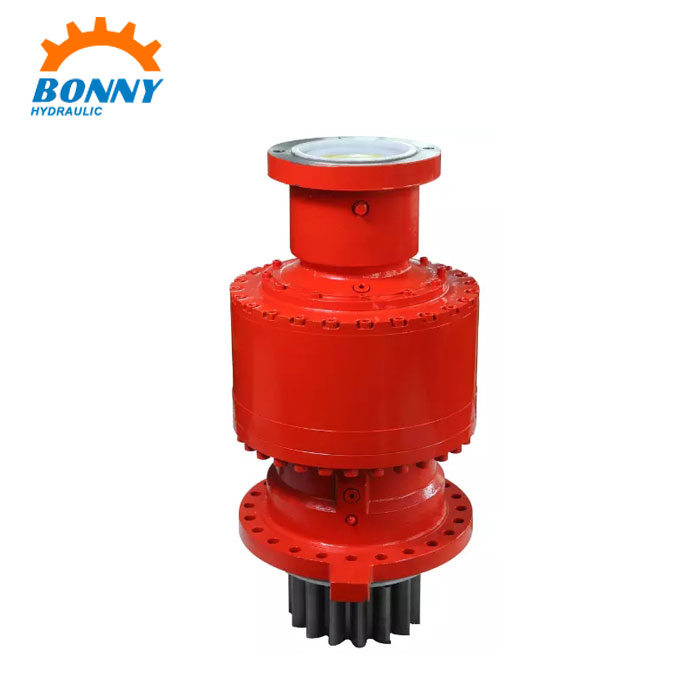

  • GFB60T3 Slew Drive Gearbox - 0 GFB60T3 Slew Drive Gearbox - 0

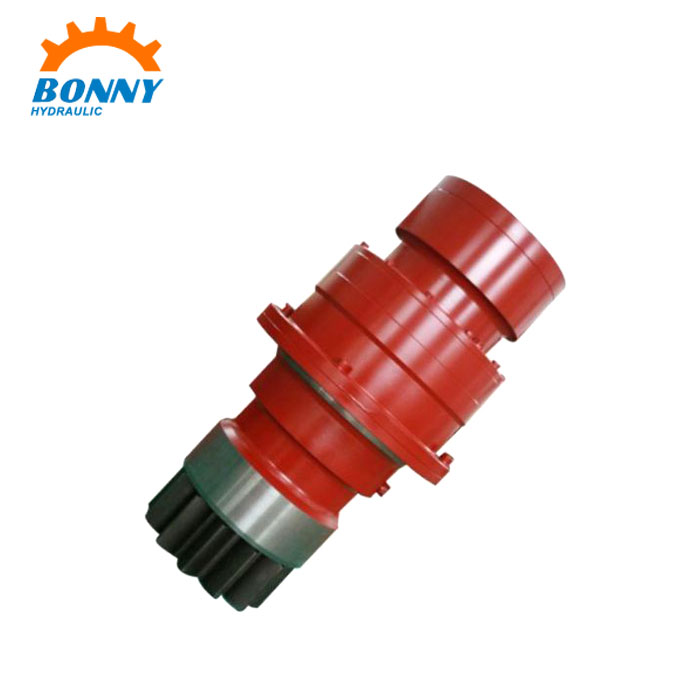

  • GFB60T3 Slew Drive Gearbox - 1 GFB60T3 Slew Drive Gearbox - 1

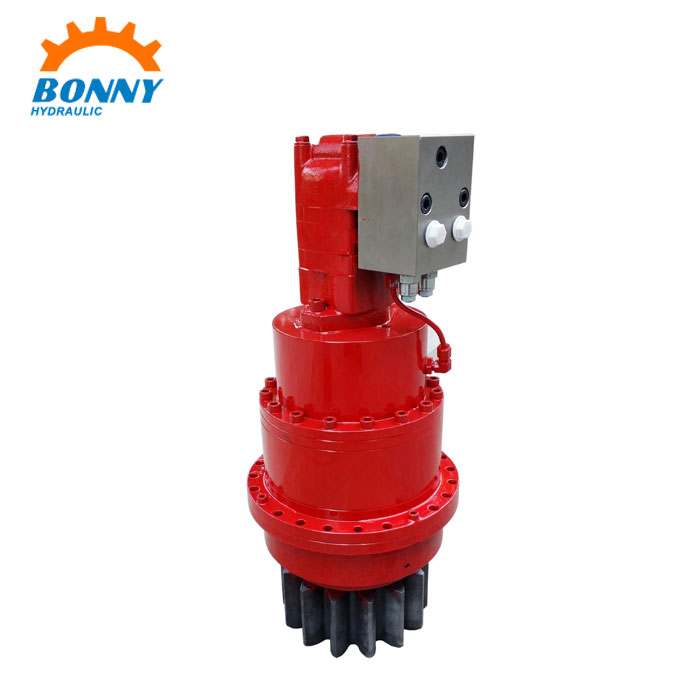

  • GFB60T3 Slew Drive Gearbox - 2 GFB60T3 Slew Drive Gearbox - 2

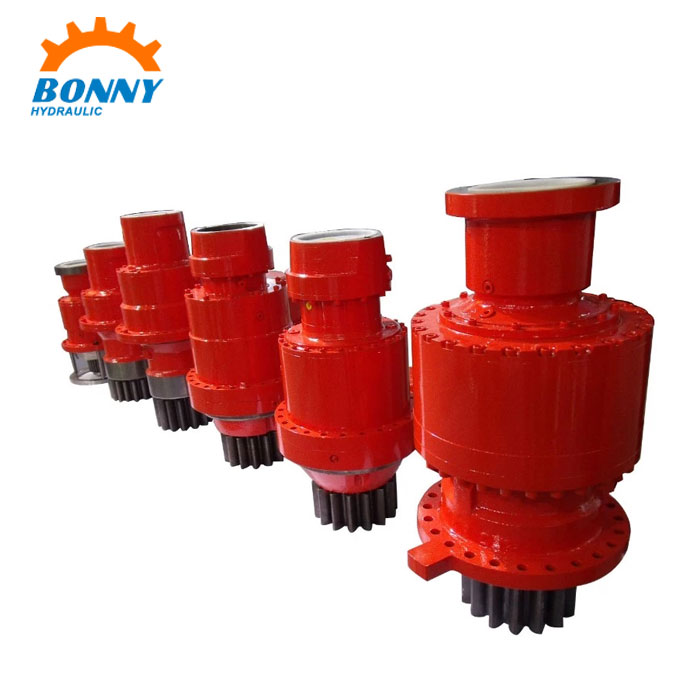

  • GFB60T3 Slew Drive Gearbox - 3 GFB60T3 Slew Drive Gearbox - 3

GFB60T3 Slew Drive Gearbox

We produce GFB60T3 Slew Drive Gearbox x more than 20 years. It is an ideal driving component for truck crane, crawler crane, ship crane and excavator, and other wheeling equipments. The structure is quite compact, especially suits those space-critical equipment.

Send Inquiry

Product Description

Product introduction:

GFB60T3 Slew Drive Gearbox is an ideal driving component for truck crane, crawler crane, ship crane and excavator, and other wheeling equipments. The structure is quite compact, especially suits those space-critical equipment. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth GFB60T3 Slew Drive Gearbox.


Features of GFB60T3 Slew Drive Gearbox:

1. Compact two- or three-stage planetary gearboxes.
2. Cageless planetary gear bearing.
3. Integrated multi-disc parking brake.
4. Rexroth hydraulic motor: fixed motor in space-saving plug-in design.
5. Easy mounting.
6. Low-noise operation .
7. Easy oil change and technical performance for the Rexroth hydraulic swing drive motor.


Product strength:

1. Ring gear and Input spline housing: All nitriding in BONNY;
2. External gear: Grinding gear with drum teeth;
3. Sealing components: All imported;
4. Standard components: Provided by designated supplier of Rexroth or foreign brand;
5. Material: High quality alloy materials, special heat treatment process;
6. Processing precision: Equal with foreign product;
7. Excellent equipment: All NC machining, including complete set testing equipment and high precision detecting, more than 80 sets equipments. Optimal in domestic industry;


Technical parameters:

Swing drives with hydraulic motor in bent axis design A2FM/E
Type/Version GFB 17 T2 GFB 17 T3 GFB 26 T2 GFB 36 T2 GFB 36 T3
Output Torque, crane T2
Max
Nm 12700 12700 16500 28500 28500
Output Torque, excavator T2
Max
Nm 7700 7700 10000 17500 17500
Ratio I 17.3-45.7 79-105.6 31.4-63 20.7-28.9 68-117.6
Hydraulic Motor A2FE63 A2FE32 A2FE90 A2FE107 A2FE90
A2FM45
A6VM55
Weight without Motor (approx.) kg 130 130 240 260 225
Type/Version GFB 50 T3 GFB 60 T2 GFB 60 T3 GFB 80 T3 GFB 110 T3
Output Torque, crane T2
Max
Nm 38000 48500 48500 68300 93300
Output Torque, excavator T2
Max
Nm 22000 27800 27800 38200 52000
Ratio I 126.7-147.4 40.4 87.5-170.9 62.3-186.4 174.9
Hydraulic Motor A2FE125
A2FM63
A2FE125 A2FE125
A2FM90
A2FE125
A2FM90
A2FE90
A6VM200
Weight without Motor (approx.) kg 315 390 425 540 680
Type/Version GFB 220 T3 GFB 330T3
Output Torque, crane T2
Max
Nm 213000 290000
Output Torque, excavator T2
Max
Nm 116000 158000
Ratio I 189.9, 247.0, 294.0 169.8, 210.8, 253.0, 303.4
Hydraulic Motor A2FM180
A2FM200
A2FM250
A2FM180
A2FM200
A2FM250
Weight without Motor (approx.) kg 1270 1580
