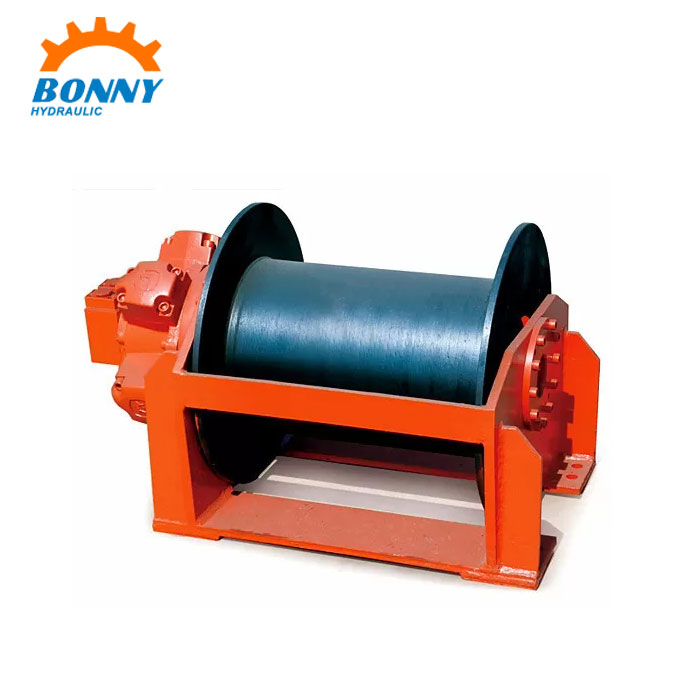

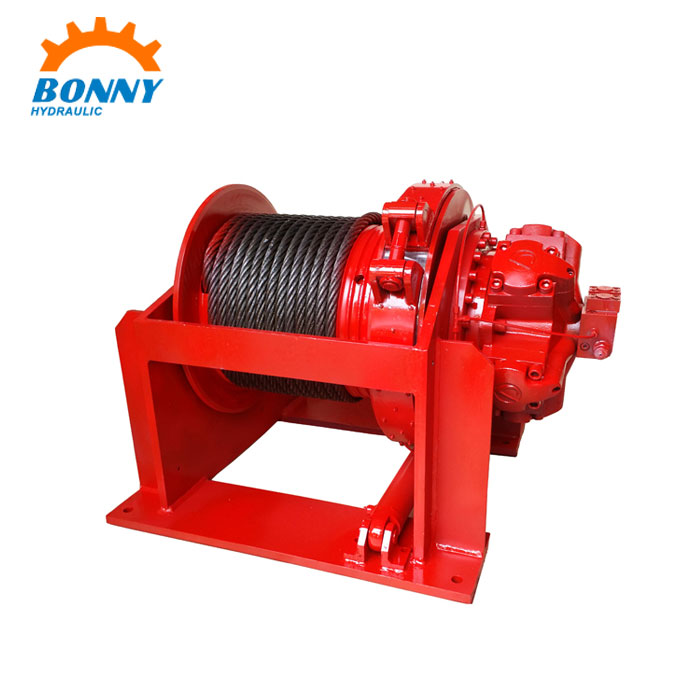

Dredger Hydraulic Winch

We produce Dredger Hydraulic Winch more than 20 years. We can offer dredger hydraulic winch with pull force from 1 ton to 100 ton. It is widely used in marine deck machinery, harbor, petroleum, drill machine, mining, geological exploration and construction machinery.

Send Inquiry

Product Description

Product introduction:

GH series dredger hydraulic winch is widely used in marine deck machinery, harbor, petroleum, drill machine, mining, geological exploration and construction machinery.


Features:

1. One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Radial piston hydraulic motor with long life operating.
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.


Technical parameters:

Model W.L.L. 1st layer W.L.L. Top layer Rope Speed Rope Diam. Capacity of Rope Working Pressure Max Supply Oil Flow
  kgf kgf M/min mm m Mpa L/min
GH1000 1000 860 25 10 60 15 25
GH2000 2000 1700 25 12 50 14 50
GH3000 3000 2500 35 15 65 16 95
GH4000 4000 3300 35 16 65 14 125
GH5000 5000 4200 40 20 87 14 175
GH6000 6000 4900 40 21.5 68 14 215
GH8000 8000 6700 40 24 100 14 270
GH10000 10000 7800 40 28 90 13 380
GH12000 12000 10000 30 30 176 17 270
GH15000 15000 12000 30 34 153 18 320
GH18000 18000 15000 30 38 143 18 375
GH20000 20000 16000 32 40 150 18 440
GH24000 24000 19000 32 42 140 17 480
GH25000 25000 20000 14 42 110 14 360
GH28000 28000 23000 14 44 105 14 380
GH30000 30000 25000 16 44 155 18 370
GH35000 35000 29000 16 46 150 18 390
GH40000 40000 33000 16 48 145 18 440


FAQ

Q: Are you trading company or manufacturer of dredger hydraulic winch ?
A: We are factory of dredger hydraulic winch.
Q: How long is your delivery time?
A: Generally it is 5-25 days if the goods is the standard dimension.
Q: Can you custom make the product?
A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order?
A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
