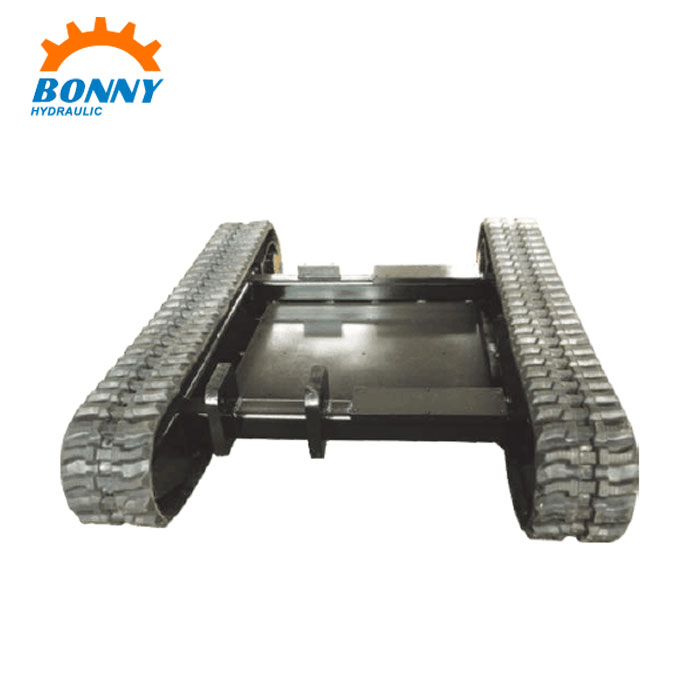

Crusher Steel Track Undercarriage
  • Crusher Steel Track Undercarriage - 0 Crusher Steel Track Undercarriage - 0
  • Crusher Steel Track Undercarriage - 1 Crusher Steel Track Undercarriage - 1
  • Crusher Steel Track Undercarriage - 2 Crusher Steel Track Undercarriage - 2
  • Crusher Steel Track Undercarriage - 3 Crusher Steel Track Undercarriage - 3

Crusher Steel Track Undercarriage

We are specialized in manufacturing Crusher Steel Track Undercarriage. We make custom Crusher Steel Track Undercarriage for your mobility needs, and our Crusher Steel Track Undercarriage can carry up to 50 ton, and supporting dual-speed final drive and travel 0-7km/h at grades up to 60%

Send Inquiry

PDF DownLoad

Product Description

Product introduction:

Our subsidiary company, Bonny tracked undercarriage factory, is specialized in the research and development of Crusher Steel Track Undercarriage. Since the establishment of Bonny, it keeps the whole world in view and blaze steadily new trails. By now, we have developed various Crusher Steel Track Undercarriage and the load capacity is from 0.5 ton to 30 ton. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.


Application of Custom Built steel Track Undercarriage:

Drilling machine: Anchor drilling rig, water well drilling rig, core drillingrig, Jet drilling rig, down-hole
drilling rig, hydraulic crawler drilling rig,, for poling rig, multipurpose drilling rig, no-dig drilling rig, etc.
Construction machinery machine: mini excavator, mini pilling machine, Aerial work platform, Small
transport loading equipment, etc.
Coaling machine: slag-raking machine, tunnel drilling rig, hydraulic drilling machine, rock loader, etc
Mining machine: mobile crusher, heading machine, conveying equipment, etc.
Agriculture machine: Sugar cane harvester, lawn mower, compost turner, ditching machine, etc


Features of Crusher Steel Track Undercarriage:

1.Adopt steel tracks or .steel tracks and block rubber.
2.The track motor can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor.. If you need, we can also provide track motor made by our own factory.
3.The beam is made of Q345B with high loading capacity.
4.It can also be designed and manufactured on customers' request.
5.It is widely applied in all kinds of large drilling rig, excavator, paver, Aerial Working Platform and construction engineering machines.


Technical parameters:

MODEL

Dinamic  capacity

Static  capacity

Weight kg.

Press. Bar

oil flow L/min

Torque Nm to engine

Grad.

Speed km/h

ST-3500

3500

4000

750

220

35

4723

65%

2/3.2

ST-6000

6000

7000

1350

220

55

8330

65%

2/3.7

ST-8000

8000

9500

1830

300

82

11700

65%

2.8/4.7

ST-10000

10000

11300

2350

350

100

14800

65%

3/5.1

ST-12000

12000

15000

2950

350

124

22500

65%

2.9/4.9

ST--15000

15000

18000

3300

350

140

24000

65%

3.2/5.5

ST-20000

20000

25000

4300

350

220

38000

65%

3.5/5.4

ST-30000

30000

37000

6500

330

260

59000

65%

2.5/4.6

ST-40000

40000

480000

7100

350

290

72800

65%

2.3/4.3



MODEL

A Length

B Center Distance

C Height

D Total Width

E Width of track shoe

F Height of Cross beam

No. of  roller

ST-3500

2030

1500

485

1800

300

225

4+4

ST-6000

2467

1950

549

1700

300-400

240

5+5

ST-8000

2783

2265

548

1800

400-450

255

8+8

ST-10000

3800

3200

600

1700

400-500

280

9+9

ST-12000

3282

2575

720

2000

400-600

345

9+9

ST-15000

3666

2923

753

2000

500-800

360

8+8

ST-20000

4065

3323

786



500-800

375

8+8

ST-30000

4530

3730

836



500-800

405

9+9

ST-40000

4888

4090

880



500-800

420

10+10


Type of track drive gearbox


Application of Custom Built Steel Track Undercarriage


FAQ

1. Are you the manufacturer or trader of crawler undercarriage?
We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of rubber crawler track undercarriage.
2. How long is the delivery?
Usually it is 25 days for the production.
3. What's the warranty of your product?
We can offer you 12 months quality guarantee period after receipt of product.
4. Can you custom make the product?
Yes, all dimensions and specifications of rubber crawler track undercarriage can be designed and made based on your requirements.
5. How to order?
To make sure the offered rubber crawler undercarriage is suitable for your application, please offer the following details:
1. Rubber or steel track undercarriage:
2. What is the payload of undercarriage:
Note: it is the weight of machine excluding the weight of undercarriage.
3. length of track undercarriage (mm):
4. width of each side of track undercarriage (mm):
5. height of track undercarriage (mm):
6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):
9. travelling speed (km/hr):
10. climbing capacity:
