A2FE Series High Speed Motor

We produce A2FE Series High Speed Motor more than 10 years. It is equipped with a standard axial tapered piston rotary group of bent axis design. Hydrostatic plug-in motors are intended primarily for installation in mechanical gearboxes, e.g. track drive gear boxes.

Send Inquiry

Product Description

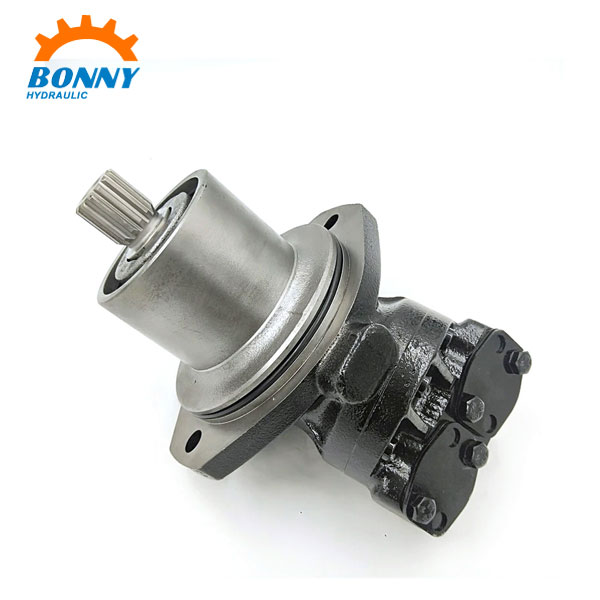

The fixed displacement plug-in motor A2FE Series High Speed Motor is equipped with a standard axial tapered piston rotary group of bent axis design. Hydrostatic plug-in motors are intended primarily for installation in mechanical gearboxes, e.g. track drive gear boxes. The design of the A2FE Series High Speed Motor with the mounting flange in the center of the housing allows it to be almost fully integrated into a mechanical gearbox to give an extremely compact unit.

The particular advantages of the plug-in motor over kit designs are complete unit; ready assembled and tested easy assembly integral plug-in to mechanical gearboxes no installation tolerances to consider


Features:

--Fixed plug-in motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits.

--Far-reaching integration in mechanical gearbox due to recessed mounting flange located in the center of the case (extremely space-saving construction)

--The output speed is dependent on the flow of the pump and the displacement of the motor

--The output torque increases with the pressure differential between the high-pressure and the low pressure side.

--Small dimensions

–High total efficiency

–Complete unit, ready assembled and tested

–Easy to install, simply plug into the mechanical gearbox

–No configuration specifications to be observed when installing

–Totally interchangeable with original Rexroth A2FE Series High Speed Motor.



Technical Parameter of A2FE Series High Speed Motor

Size

A2FE





28

32

45

56

63

80

90

107

125

Swept volume

Vg

cm3

28,1

32

45,6

56,1

63

80,4

90

106,7

125

Speed 1)

nmax

rpm

6300

6300

5600

5000

5000

4500

4500

4000

4000

Flow

at nmax

qVmax

l/min

176

201

255

280

315

360

405

427

500

Torque



Tmax

Nm

178

204

290

356

400

508

572

680

796

Weight (approx.)

m

kg

9,5

9,5

13,5

18

18

23

23

32

32

Size

A2FE





160

180

250

355











Swept volume

Vg

cm3

160,4

180

250

355











Speed 1)

nmax

rpm

3600

3600

2700

2240











Flow

at nmax

qVmax

l/min

577

648

675

795











Torque

p=350bar

Tmax

Nm

-

-

1393

1978













p=400bar

Tmax

Nm

1016

1144

-

-











Weight (approx.)

m

kg

45

45

73

110

















Selection of A2FE Series High Speed Motor

1. displacement of motor

2. type of output shaft


Application of A2FE Series High Speed Motor
