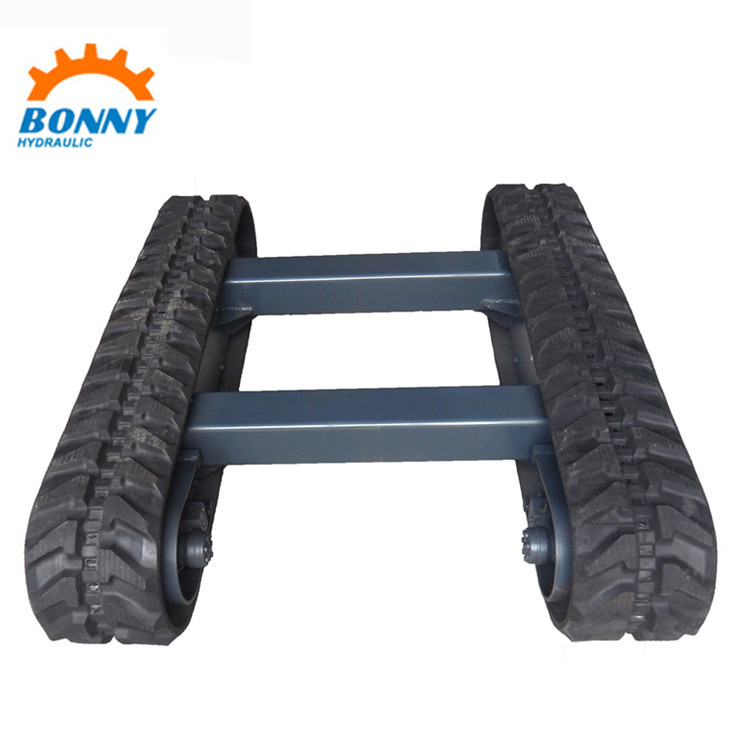

3.5 Ton Rubber Track Undercarriage
  • 3.5 Ton Rubber Track Undercarriage - 0 3.5 Ton Rubber Track Undercarriage - 0
  • 3.5 Ton Rubber Track Undercarriage - 1 3.5 Ton Rubber Track Undercarriage - 1
  • 3.5 Ton Rubber Track Undercarriage - 2 3.5 Ton Rubber Track Undercarriage - 2
  • 3.5 Ton Rubber Track Undercarriage - 3 3.5 Ton Rubber Track Undercarriage - 3

3.5 Ton Rubber Track Undercarriage

You can rest assured to buy China customized Bonny Hydraulics® 3.5 Ton Rubber Track Undercarriage from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry

PDF Download

Product Description

BONNY HYDRAULICS is a specialized 3.5 Ton Rubber Track Undercarriage manufacturer and supplier in China. We have been specialized in designing and manufacturing the 3.5 Ton Rubber Track Undercarriage for more than 15 years. Besides 3.5 Ton Rubber Track Undercarriage, we can offer the track undercarriage with payload ranges from 500 kgs to 80,000 kgs. The dimension can be customized design based on real application of customer’s.

Since the establishment of Bonny, we keep the whole world in view and blaze steadily new trails. By now, we have developed various Custom Built Track Undercarriage and the load capacity is from 0.5 ton to 80 ton. Meanwhile, we have a lot of experience engineers who can provide you technical support and technical consultancy to meet your needs.


Features of Custom Built 3.5 ton rubber track undercarriage

1. Adopt high strength engineering rubber track.

2. The track motor of rubber track undercarriage can be fixed displacement or variable displacement concealed planetary gearbox and hydraulic motor. If you need, we can also provide track motor made by our own factory.

3. The beam of 3.5 ton rubber track undercarriage is made of Q345B with high loading capacity.

4. It can also be designed and manufactured on customers' request for the rubber track undercarriage.


Technical parameters of rubber track undercarriage

MODEL

Dynamic capacity

Static capacity

Weight kg.

Press.Bar

oil flow L/min

Torque Nm to engine

Grad.

Speed km/h

RT-1500

1200

1500

330

270

17

2000

65%

1.7

RT-2500

2500

3000

380

220

35

4723

65%

2/3.2

RT-3500

3500

4000

650

220

35

4723

65%

2/3.5

RT-5000

5000

6000

900

220

55

8330

65%

2/3.7

RT-6000

6000

7000

1280

220

55

8330

65%

2/3.7

RT-8000

8000

9500

1550

300

82

11700

65%

2.8/4.7

MODEL

A Length

B Center Distance

C Height

D Total Width

E Width of track shoe

F Height of Cross beam

No. of roller

RT-1500

1420

1066

350

980

230

165

3+3

RT-2500

1850

1370

480

1220

250

245

4+4

RT-3500

1980

1511

500

1520

300

250

5+5

RT-5000

2500

1950

550

1800

350

265

6+6

RT-6000

2905

2355

550

1800

400

265

7+7

RT-8000

2950

2450

600

1800

400

310

7+7


Structure of track undercarriage

Type of track undercarriage for selection:

A. Steel track undercarriage;

B. Rubber track undercarriage;

C. Steel track undercarriage with rubber pads

Application of Custom Built 3.5 ton rubber track undercarriage Drilling machine:

Anchor drilling rig, water well drilling rig, core drilling rig, Jet drilling rig, down-hole drilling rig, hydraulic crawler drilling rig, for poling rig, multipurpose drilling rig, no-dig drilling rig, etc.

Construction machinery machine: mini excavator, mini pilling machine, Aerial work platform, Small transport loading equipment, etc.

Coaling machine: slag-raking machine, tunnel drilling rig, hydraulic drilling machine, rock loader, etc

Mining machine: mobile crusher, heading machine, conveying equipment, etc.

Agriculture machine: Sugar cane harvester, lawn mower, compost turner, ditching machine, etc


Type of cross member for selection


Package of 3.5 ton rubber track undercarriage

Strict Quality Control
