20 Hoisting Hydraulic Winch

We produce 20 Hoisting Hydraulic Winch more than 20 years. This kind of hydraulic winch are widely used in ship crane, harbor, petroleum, drill machine, engineering machinery, geological exploration and construction machinery.

Send Inquiry

Product Description

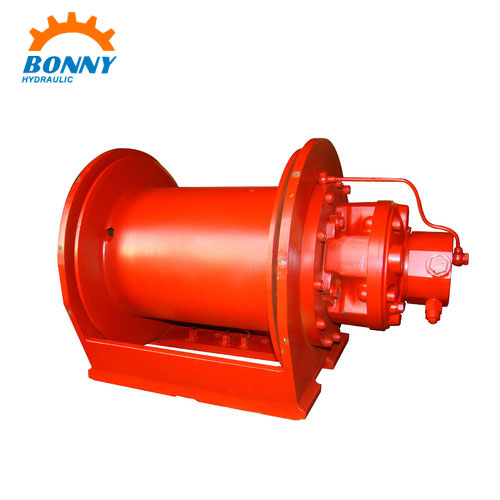

GW 20 Hoisting Hydraulic Winch use the patent technique of our company and consist of a variety of valve blocks with function of braking and single counterbalance valve, high speed hydraulic motor, Z type brake, KC type or GC type planetary gearbox,drum,frame and clutch. The user only needs to provide a hydraulic power pack and directional valve. Due to the 20 Hoisting Hydraulic Winch fitted with diversified valve block, it not only simplified the hydraulic system, but also improved the reliability of the winch. In addition, the20 Hoisting Hydraulic Winch feature a high efficiency and power, low noise and energy consumption,and have a compact figure and good economic valve. Therefore, the series have been widely applied to construction, petroleum, mining, geological drilling, ship and deck machinery. GW series 20 Hoisting Hydraulic Winch have been well sold in China, and also have been exported to the Middle-east, south-east Asia India, Korea, Russia, Australia. US Netherlands and so on.



Features:

1. One-or two-stage planetary gearboxes, smooth operation and reasonable structure.

2. 2. Normally closed friction type brake, high braking torque, safe and reliable operating.

3. 3. Small volume, compact structure and high transmission efficiency.

4. 4. Radial piston hydraulic motor with long life operating.

5. 5. Mounting frame is available on request.

6. 6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.



Technical parameters:

Model

the 1st layer

Diameter of reel bottom (mm)

Diameter of rope (mm)

Capacity of rope (mm)

Hydraulic motor

Gearbox Model

Pull Force (KN)

Rope Speed (m/min)

GW2.5-10-60-10-ZP

10

0-30

238

10

60

GM05-110D51

C2.5-5

GW2.5-20-50-12-ZP

20

0-30

238

12

50

GM05-200D51

C2.5-5.5

GW3-30-65-15-ZP

30

0-35

305

15

65

GM2-420D51

C3-5

GW3-40-60-16-ZP

40

0-35

305

16

60

GM2-500D51

C3-5.5

GW4-50-70-20-ZP

50

0-40

380

20

70

GM3-900D240101

C4-5

GW4-60-68-21.5-ZP

60

0-40

380

21.5

68

GM3-1000D240101

C4-5.5

GW5-80-100-24-ZP

80

0-40

470

24

100

GM5-1800D240101

C5-5

GW5-100-90-28-ZP

100

0-40

470

28

90

GM5-2000D240101

C5-5.5

GW6-120-176-30-ZP

120

0-30

600

30

175

GM6-3000D480101

C6-5.5

GW6-150-150-34-ZP

150

0-25

600

34

150

GM6-3000D480101

C6-5.5



FAQ

Q: Are you trading company or manufacturer ?

A: We are factory of hydraulic winch.

Q: How long is your delivery time?

A: Generally it is 5-25 days if the goods is the standard dimension.

Q: Can you custom make the product?

A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.

Q: How to order?

A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:

1. pull force of inner layer (kg):

2. rope speed of inner layer (m/min):

3. rope diameter (mm):

4. length of rope (m):

5. drum diameter (mm):

6. with or without groove:

7. with or without brake:
